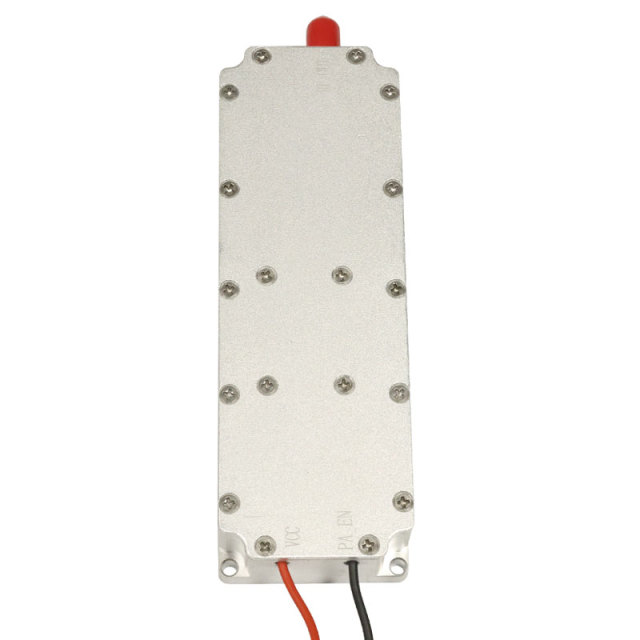

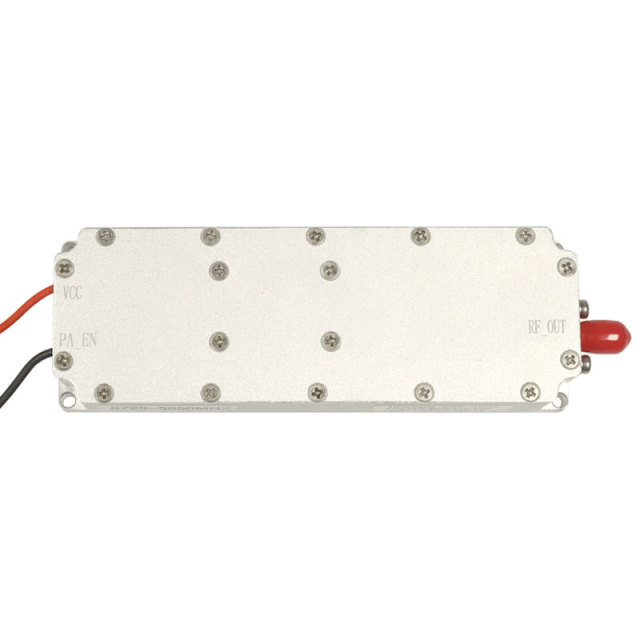

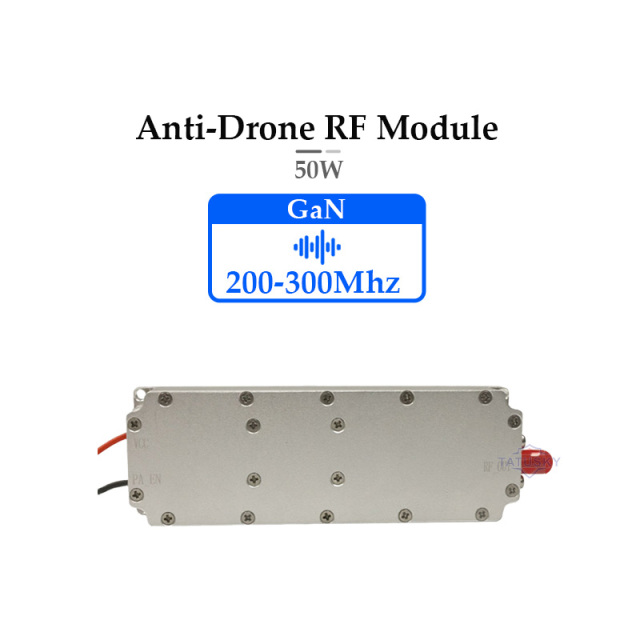

Name: 200-300mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

Functional Positioning and Target Users
This 200–300 MHz 50W GaN RF power amplifier module is positioned as a professional mid-band signal amplification unit for RF engineers, system integrators, laboratory researchers, and wireless equipment developers. It is designed to operate as the downstream power stage after signal generators, frequency synthesizers, or modulation boards in custom RF transmission platforms. Typical users include spectrum research institutions, RF test laboratories, wireless system developers, EMC evaluation teams, and educational engineering facilities. The module is delivered as a hardware-only amplification unit and must be integrated into a complete system with suitable power supply, cooling, control, and antenna subsystems.

RF Design Structure and Core Performance Parameters
The module is built on GaN semiconductor technology, enabling higher power density, improved electrical efficiency, and enhanced thermal stability compared with traditional silicon-based RF amplifier solutions. It delivers continuous RF output power up to 50W across the 200–300 MHz frequency band with controlled gain flatness. The internal design includes impedance matching optimization, thermal management structures, and protective mechanisms for temperature and voltage stability. Shielded RF layout minimizes internal coupling and external interference, supporting reliable operation under continuous-duty laboratory testing and extended RF transmission experiments.

Engineering Value and System-Level Contribution
In custom RF systems, a stable mid-band amplification stage is essential for accurate signal reproduction, antenna drive capability, and controlled output verification. This module allows engineers to construct compact, high-power RF transmission chains without relying on bulky multi-stage amplifier cascades. By integrating the power stage into a single module, it reduces signal path complexity, lowers transmission losses, improves overall system efficiency, and simplifies maintenance. For research institutions and equipment developers, it supports rapid prototyping, frequency response verification, and long-duration RF stress testing with predictable and repeatable performance behavior.

Product Advantages

High-Efficiency GaN Architecture for Thermal Stability
GaN-based design enables higher efficiency and lower junction temperature compared with conventional RF amplifier technologies. This allows sustained 50W output with reduced heat accumulation, supporting long-term operation in laboratory benches, rack-mounted systems, and enclosed test platforms. Improved thermal performance directly enhances long-term reliability and reduces maintenance frequency.

Frequency-Optimized Output for Mid-Band RF Systems
The 200–300 MHz operating range is specifically optimized for stable gain and impedance matching, ensuring predictable output behavior without excessive tuning. This frequency-focused design provides higher signal fidelity for antenna evaluation, spectrum behavior analysis, and wireless transmission experiments than wide-sweep broadband amplifiers.

Modular Mechanical Structure for Easy Integration
The compact mechanical structure allows the module to be installed into standard RF enclosures, test racks, vehicle-mounted systems, or portable experimental platforms. Standard RF connectors and DC power interfaces simplify system wiring, replacement, and future upgrades, enabling scalable RF system design.

Use Scenarios

RF Laboratory Signal Amplification and Spectrum Testing
The module is used as a controlled power amplification stage for spectrum analyzer verification, antenna radiation pattern testing, harmonic behavior analysis, and long-term RF stability testing within shielded laboratory environments.

Custom Wireless System Development and Prototyping
Developers of proprietary wireless transmission systems use this module to evaluate coverage range, signal integrity, and link stability during early-stage product development and prototype validation.

Education and Applied Research Platforms
Universities, training centers, and applied research institutes utilize this type of module for RF system teaching, thermal behavior analysis, and high-power circuit verification in engineering laboratories.

200-300mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 200-300MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 200-300MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		200-300	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W
Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base

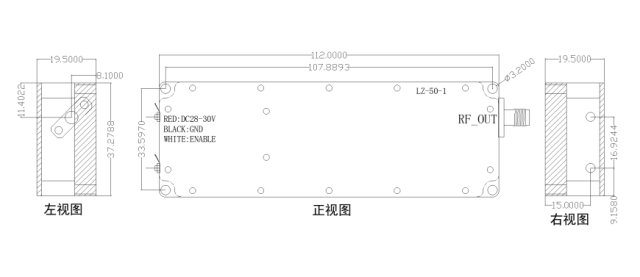

Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g

Connection Instruction
