This 2500-4000MHz GaN anti-drone amplifier module is designed for drone jamming and countermeasure applications using gallium nitride (GaN) technology with high power, high efficiency, and wide frequency band coverage.
Module Purpose and Typical Users
This 2500–4000 MHz 100W GaN RF power amplifier module is intended as a high-power signal amplification component for RF engineers, wireless system integrators, communication equipment developers, and research laboratories. It acts as a downstream amplification stage after signal sources, synthesizers, or modulation boards in custom RF transmission systems. Target users include wireless communication developers, RF testing labs, spectrum analysis teams, academic research centers, and integrators of high-frequency RF infrastructure. The module is provided as a hardware block and requires integration into a broader RF system including power supply, control electronics, antennas or waveguides, and appropriate cooling.
Core RF Design and Performance Characteristics
Utilizing GaN semiconductor technology, this amplifier achieves high power density and improved thermal efficiency compared with traditional RF amplifier designs. It delivers continuous RF output power up to 100W across a wide frequency band from 2500 MHz to 4000 MHz. The amplifier is engineered for flat gain response, stable impedance matching, low harmonic distortion, and controlled noise figure — ensuring high signal fidelity across the wide band. Internal thermal management, voltage regulation, and RF shielding mechanisms support stable operation under prolonged use, making it suitable for long-duty RF transmission, spectrum experiments, or communication system tests at mid- to high-GHz ranges.
System-Level Utility and Engineering Value
In advanced wireless transmission and RF infrastructure projects, a robust wideband amplifier stage simplifies system architecture by consolidating high-frequency amplification into a single module. Using this 2500–4000 MHz 100W amplifier enables system designers to avoid multiple narrowband modules or complex cascaded chains, reducing system footprint, lowering insertion losses, and improving overall efficiency. For research labs and communication developers, the module supports rapid prototyping, wideband frequency sweeps, antenna characterization, signal propagation experiments, and scalable RF deployment. Its predictable output and power capability facilitate consistent performance across diverse test or deployment scenarios.
Product Advantages
High-Power Output with Efficient Thermal Management
Thanks to GaN design, the module supports 100W continuous output with efficient heat dissipation, enabling stable operation during long-duration RF transmission or testing. Thermal stability reduces risk of thermal drift or power drop, providing reliable performance for extended transmission sessions and reducing maintenance needs in high-frequency RF environments.
Wideband Coverage Simplifies High-Frequency RF Design
Coverage from 2500 MHz to 4000 MHz in a single amplifier allows engineers to support multiple wireless protocols or frequency regimes without switching hardware. This wideband capability is especially beneficial for projects requiring flexible frequency allocation, rapid retuning, or multi-standard compatibility. It reduces component count, wiring complexity, and simplifies system design compared to multi-module narrowband architectures.
Modular Integration Facilitates Flexible System Architecture
The module’s mechanical and electrical interface is designed for easy integration into a variety of RF platforms: rack-mounted systems, test benches, mobile test rigs, or custom enclosure builds. Standard RF connectors, power supply interface, and mounting provisions enable quick installation or replacement. For integrators or research engineers, this modularity supports scalable system design, allowing upgrades or reconfiguration without redesigning the entire RF chain.
Use Scenarios
Wireless Communication System Development and Testing
Engineers developing wireless communication systems — such as point-to-point links, high-frequency data transmission, or emerging wireless protocols — can use this amplifier as the high-frequency power stage to test link budgets, antenna radiation patterns, signal stability, and coverage performance under high-power transmission conditions.
RF Laboratory Research and Spectrum Experimentation
Research labs and academic institutions can employ this module for wideband spectrum testing, antenna characterization, electromagnetic propagation experiments, high-frequency signal behavior analysis, and long-duration RF transmission testing. Its predictable output across 2500–4000 MHz supports controlled experiments and reproducible results.
Prototyping and Pre-Deployment Validation for RF Infrastructure
For system integrators building high-frequency RF infrastructure — such as high-band communication repeaters, experimental transmission units, or custom wireless test rigs — this amplifier provides a compact, high-power solution to drive antennas or waveguides. It supports scalable deployment and eases validation of high-frequency RF components before final system assembly.

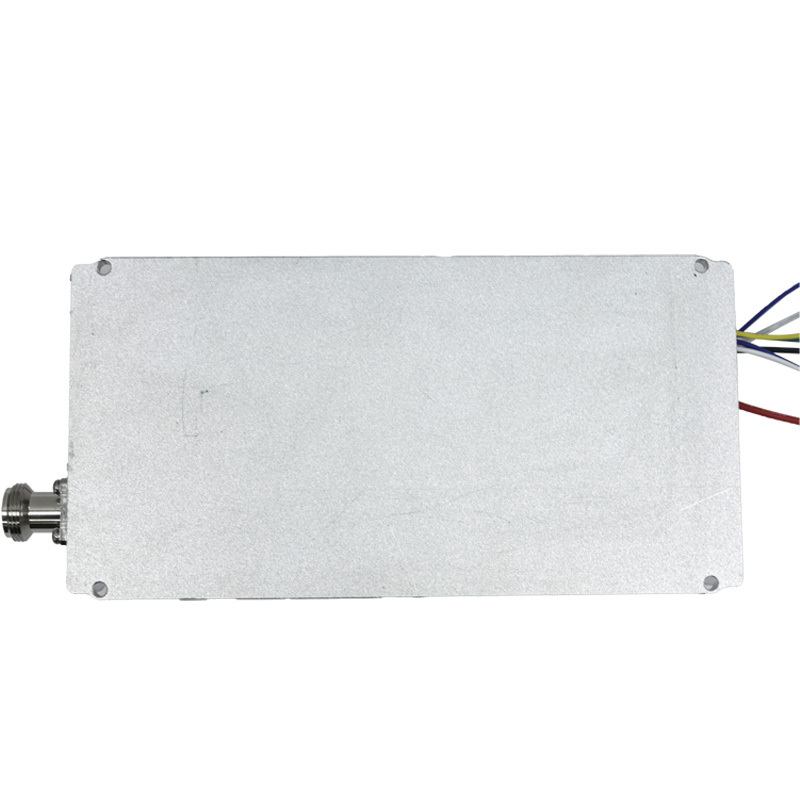

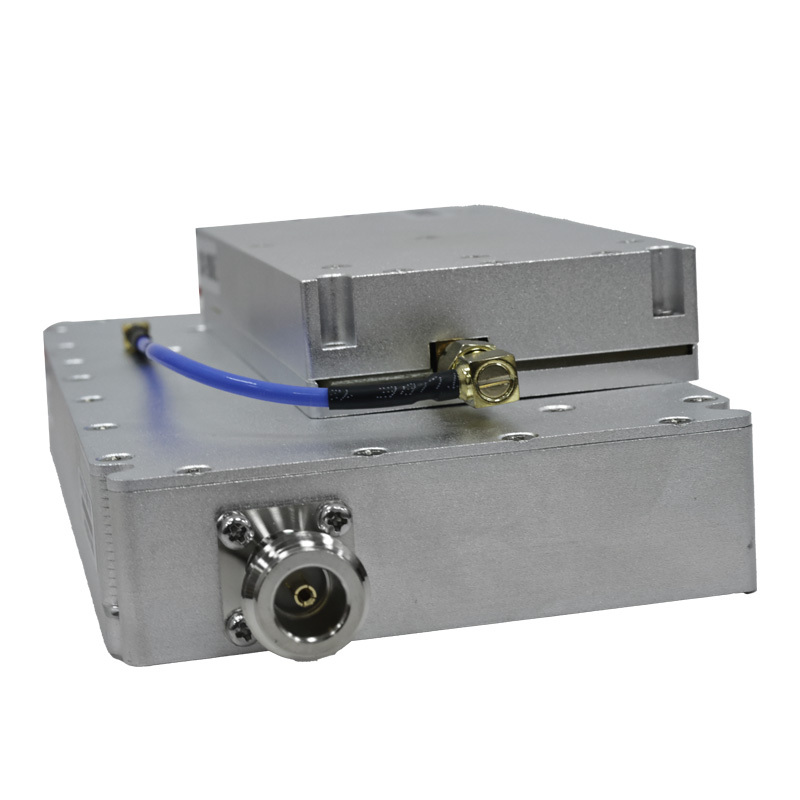

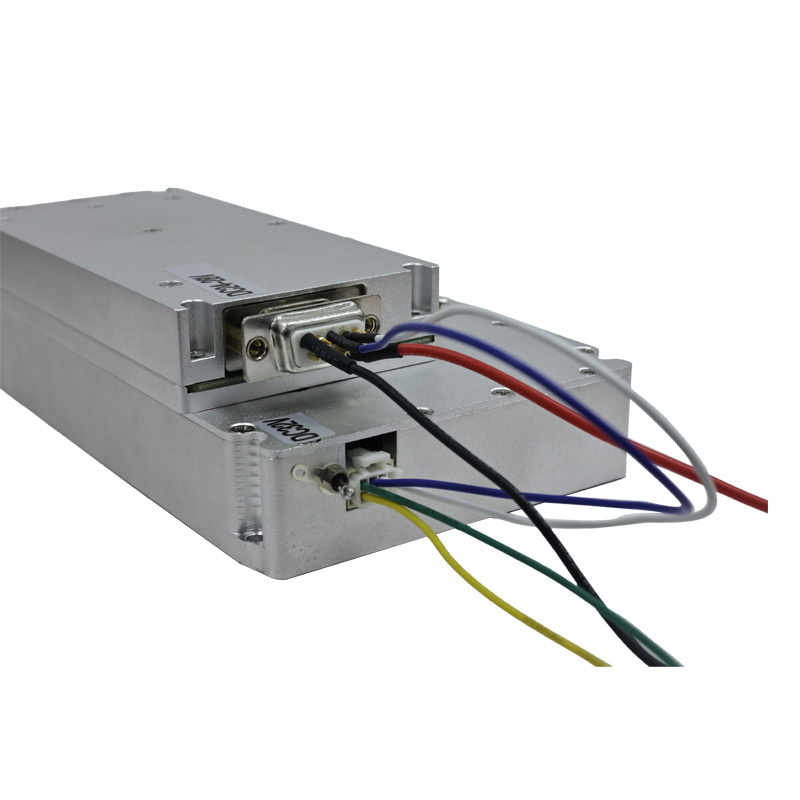

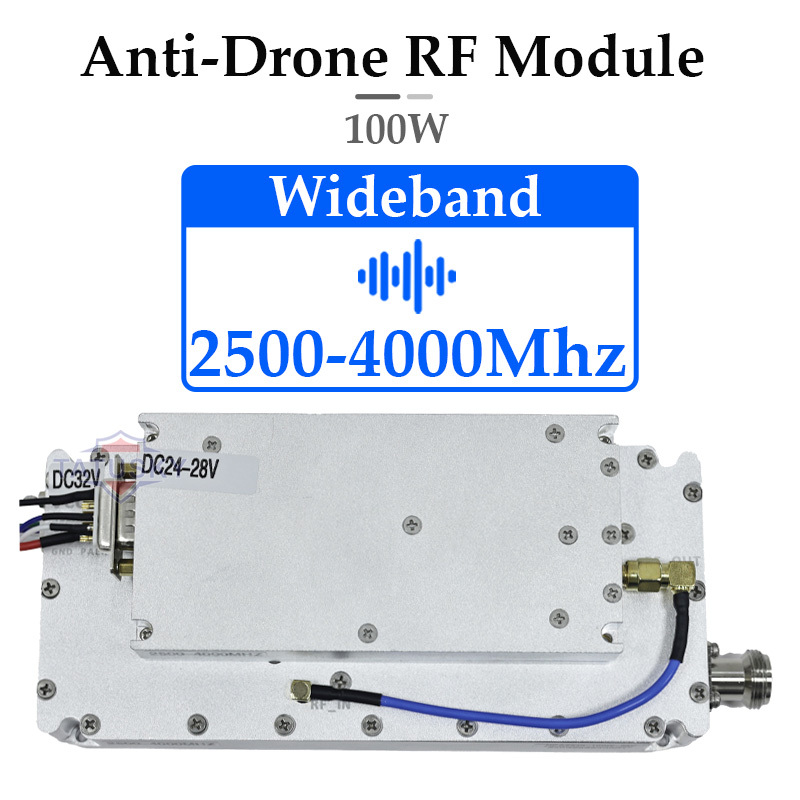

2500-4000MHz 100W GaN Anti-Drone Module
✅ Ultra Wide Frequency Coverage: supports 2500MHz-4000MHz frequency band, can interfere with multiple drone communication protocols.
✅ High power output: Maximum output power is 100W, effectively improving the jamming range and effect.
✅ High-efficiency GaN technology: Higher efficiency, lower power consumption and better heat dissipation performance than traditional LDMOS solutions.
✅ Low VSW protection: with antenna port protection (optional circulator or electronic bridge) to prevent damage to the amplifier.
✅ Flexible Integration: Compact size, can be quickly integrated into all kinds of UAV anti systems (portable, vehicle-mounted, fixed, etc.).
✅ Weather Resistant: It can work stably in -40℃ to +65℃ environment and adapt to various harsh conditions.
🚔 Law enforcement agencies: police, border security, prison management, preventing illegal intrusion of drones.
🔰 Military defense: battlefield drone suppression, tactical shielding interference.
🏭 Critical infrastructure protection: airports, power stations, government agencies, etc. against drone threats.
If you need detailed specifications or customized solutions, please contact us!
About Us
We specialize in the design and manufacture of GaN-based RF power amplifier modules covering multiple frequency bands and power levels, tailored for wireless communication development, spectrum research, and RF infrastructure projects. Our engineering expertise ensures stable electrical performance, efficient thermal management, and modular mechanical design to support varied integration scenarios including test benches, research labs, and custom RF systems. Our customers include wireless developers, communication equipment manufacturers, academic research institutions, and RF integrators seeking reliable, high-power components for mid- to high-frequency applications.
Provide your frequency, power, and system integration specifications for tailored configuration and technical support today!
FAQ
What power supply is required for this amplifier module?
It requires a regulated DC power supply compatible with the module’s voltage and current specifications as defined in the technical datasheet.
Is it suitable for continuous high-frequency operation?
Yes — with appropriate cooling and power regulation, it supports continuous RF transmission at 100W for extended periods.
Can the frequency range be adjusted beyond 2500–4000 MHz?
Frequency customization may be possible depending on project volume and technical feasibility; contact engineering team for evaluation.
Does the module include control software or signal generation capabilities?
No — the module acts solely as an RF power amplification stage; signal generation and control must be provided by external equipment.
What is the typical lead time for orders?
Lead time depends on order quantity and configuration requirements, generally ranging from a few weeks after finalizing specifications.
