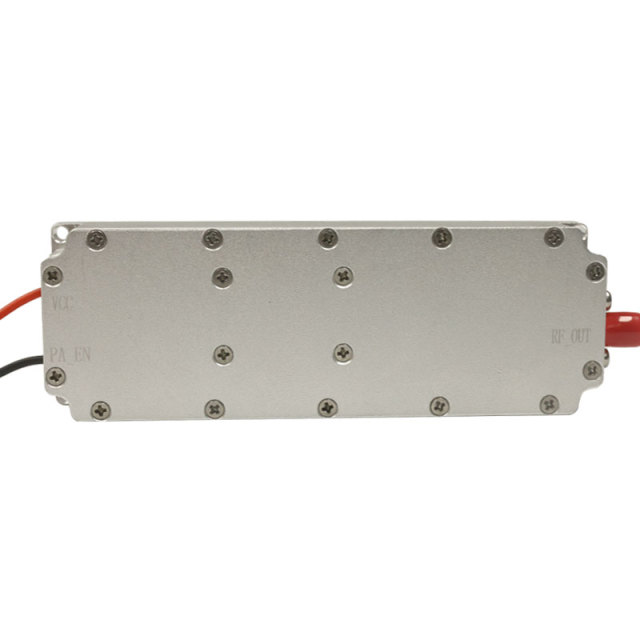

Name: 300-400mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

Role Positioning for Integrated Counter-UAS Platforms
This 300–400MHz 50W GaN power amplifier module is engineered as a core RF subsystem within an integrated anti drone system and broader anti uav system architectures. It is intended for OEMs, system integrators, and project engineers building layered counter-UAS platforms that combine drone detector, drone detection system, and controlled RF countermeasures. The module focuses on delivering stable, repeatable RF output within its designated band to support coordinated responses initiated by upstream sensing components, such as drone detection radar system or spectrum-based detectors. Its design emphasizes predictable electrical behavior and thermal stability for continuous-duty platform operation in regulated environments.

RF Architecture, GaN Power Stage, and Core Parameters
Built around a high-efficiency GaN power stage, the module provides nominal 50W output capability within the 300–400MHz band, supporting consistent spectral energy delivery required by professional anti drone technology systems. The RF chain prioritizes gain linearity, load tolerance, and impedance stability to minimize reflected power under variable antenna matching conditions. Power conditioning and protection circuits are arranged to support long-duration operation without output drift. As part of an anti drone jammer system when integrated by qualified parties, the module’s role is to provide controlled RF output while system-level logic, sensing fusion, and authorization remain external to the PA unit.

Application Value in Multi-Layer Drone Control Solutions
For developers of anti drone systems, this GaN PA module serves as a standardized RF output block that simplifies system scaling and maintenance planning. It enables coordinated operation with upstream drone detector app platforms, spectrum analysis units, and command software that trigger responses only under authorized conditions. By separating detection, decision, and RF output layers, integrators can create flexible system architectures that adapt to different operational doctrines. This modular role significantly improves serviceability and future upgrade paths for platforms combining drone detection system sensors and controlled RF countermeasures.

Product Advantages

GaN Power Topology for Continuous-Duty RF Stability
The GaN topology used in this module delivers higher power density and improved thermal margin compared with traditional LDMOS structures. Within an anti drone jammer platform, this translates into stable output under sustained load without pronounced thermal compression. For integrators working across anti drone systems projects, this consistency reduces the need for aggressive derating and allows predictable RF coverage planning across varying ambient conditions.

Modular Integration for Multi-Sensor Counter Platforms
This module is engineered strictly as a subsystem element, supporting clean mechanical, electrical, and thermal interfaces within larger anti uav system enclosures. It integrates with upstream trigger logic derived from drone detector and drone detection radar system layers rather than operating autonomously. This separation simplifies compliance review, multi-vendor integration, and software-defined control at the platform level, a key requirement in modern anti drone technology deployments.

System-Level Control and Power Safety Coordination
Within an anti drone jammer system, this module relies on external authorization, timing control, and sensing fusion. Over-voltage, over-current, and thermal safeguards are enforced at the hardware level to ensure that RF output remains within predefined limits. This design philosophy supports regulated use models where anti drone weapons classifications are handled by the complete system certification rather than by individual RF subassemblies.

Use Scenarios

Security Technology Operators Managing Perimeter Counter-UAS Sites
Operators responsible for fixed-site counter-UAS installations deploy layered platforms combining drone detection system, command software, and RF output subsystems. In these environments, this module functions strictly as the RF execution layer within the broader anti drone system. Detection alerts from drone detector arrays or radar units initiate centralized authorization before RF output is applied. The predictable electrical behavior of the module enables operators to maintain calibrated system response profiles without manual RF retuning during routine operations.

R&D Engineers Validating Multi-Band Counter-Drone Platforms
Engineers developing next-generation anti drone technology platforms require controlled RF modules to validate system-level trigger logic, thermal budgets, and EMC behavior. This GaN PA supports repeatable output during bench and chamber testing when paired with spectrum sensing and drone detection radar system simulators. Its modularity allows developers to isolate RF behavior from sensing and command software, accelerating debugging and compliance preparation within regulated test environments.

System Integrators Deploying Networked Counter-UAS Nodes
Integrators building distributed anti drone systems across multiple sites require RF modules with uniform electrical characteristics for synchronized operation. When paired with networked drone detection system infrastructure and centralized management software, this module supports consistent response timing and RF coordination across a site network. Integration teams can also link mobile command tools, including drone detector app interfaces, for authorized monitoring and control without embedding RF logic into client software.

300-400mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 300-400MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 300-400MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		300-400	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W
Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base
Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g

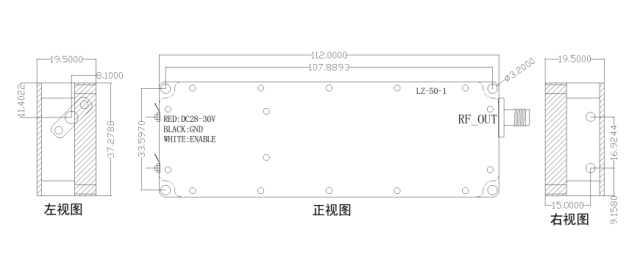

Connection Instruction
