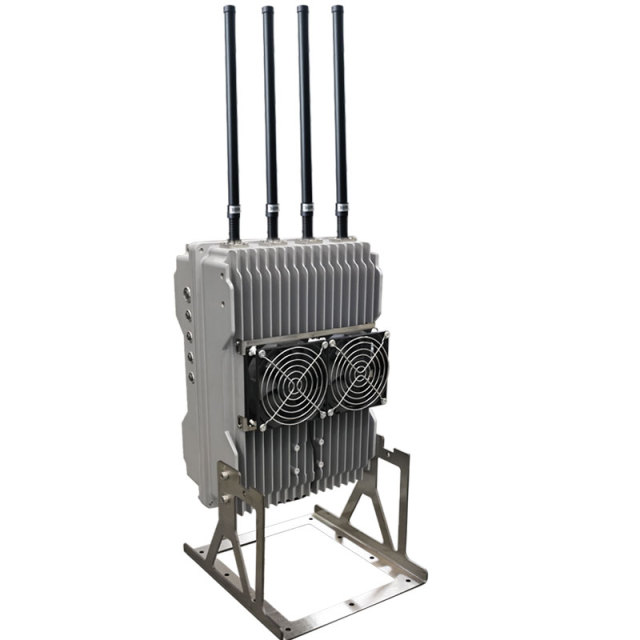

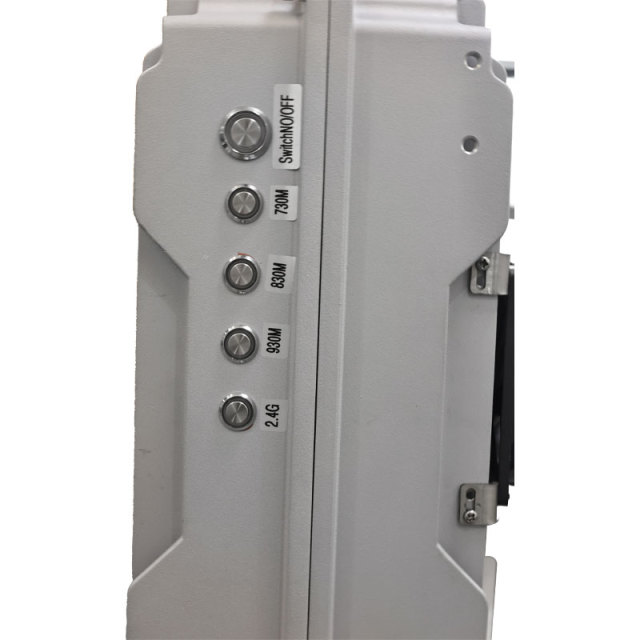

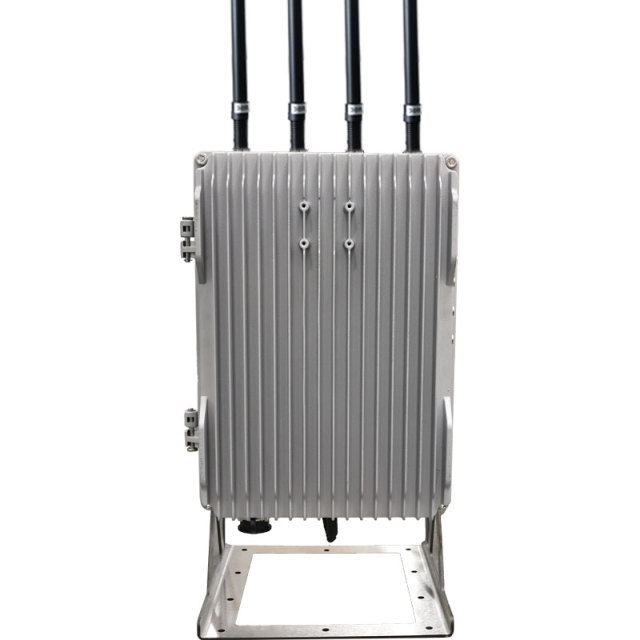

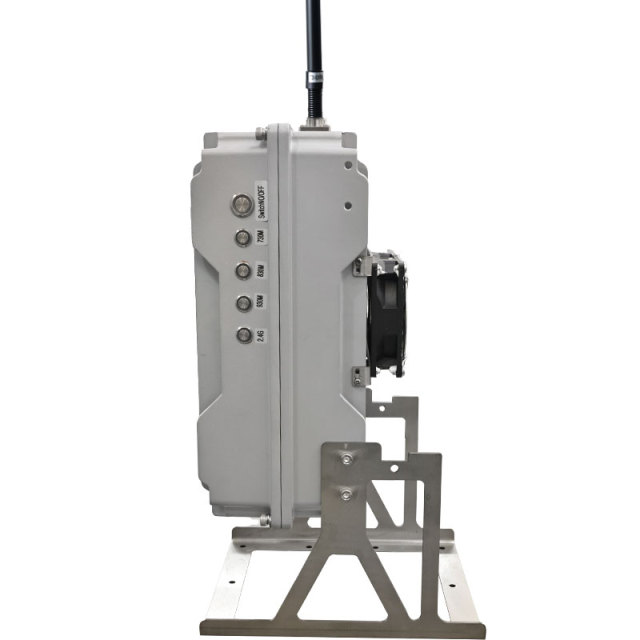

4-Band Vehicle-Mounted FPV Jamming Device

Name: 4-Band Vehicle-Mounted FPV Jamming Device
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

The 4-band vehicle-mounted FPV jamming device is designed to provide mobile, real-time drone disruption capabilities for vehicles in motion. Supporting three key frequency bands commonly used by FPV (First-Person View) drones, this device efficiently jams drone signals, preventing unauthorized access or interference in sensitive areas.

Frequency

700-850MHz 850-970MHz 970-1100MHz 1100-1200MHz (Support customize frequency)

Output Power

200W(Total)

Endurance

Up to 60 minutes(1 battery)

Material

Aluminum

Size

330*235*160 MM

Weight

10 KG

GET A QUOTE

SPECIFICATION

4-Band Vehicle-Mounted FPV Jamming Device

1.Overview
1)Portable UAV countermeasure equipment, small in size and high in power.

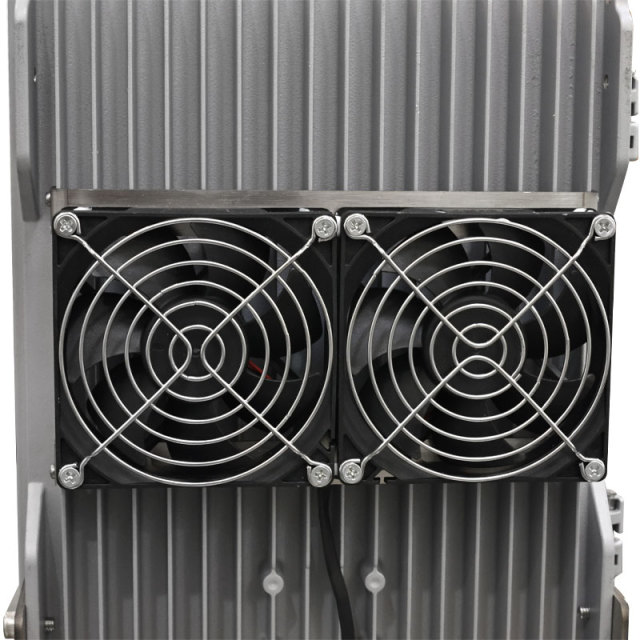

2)The device uses aluminum material and  a fan  is  installed  on the  casing,  which  can effectively dissipate heat.
3)Output  power total 200W, Use   High gain  3-4dBi for  each  omni  antenna,  shielding 500-1000m,Still depends on the strength signal in given area.
4)Each unit can jam up to 4 frequency bands simultaneously, each frequency  band  is separate and with adjustable power from max to off.

2.Technical Parameters

Item	Specification
Frequency	700-850MHz 850-970MHz 970-1100MHz 1100-1200MHz (Support customize frequency)
Output Power	200 W(Total)
Charging Voltage	12-24V/220V
Endurance	Up to 60 mintues(1 battery)
Build-in Battery	16Ah 7S
Outside Battery	16Ah 7S
Size	Equipment size:330235160 MM Antenna size:400 MM,diameter 32 MM
Weight	10 KG
Material	Aluminum
Cooling System	High efficiency aluminum alloy radiator + 2*cooling fans

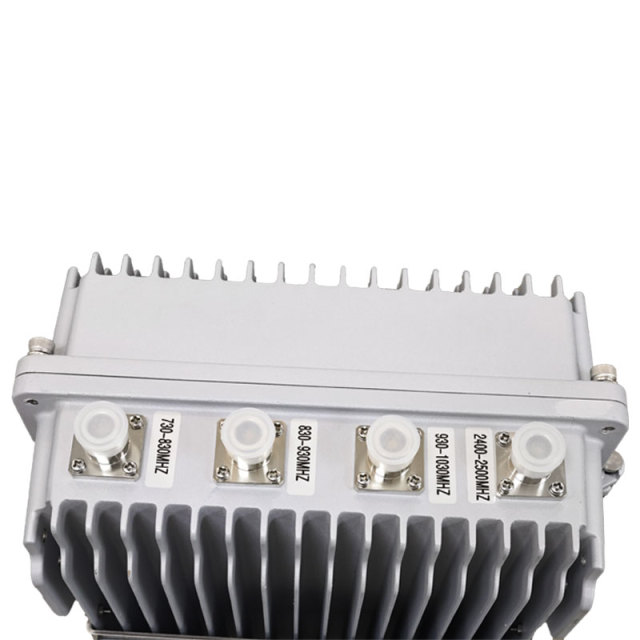

Antenna Connector	N-Type
Support Bracket	Removable
SIR(Signal to interference rate)	5 : 1 5000m(remote to drone) : 1000m(suppressor to drone)
