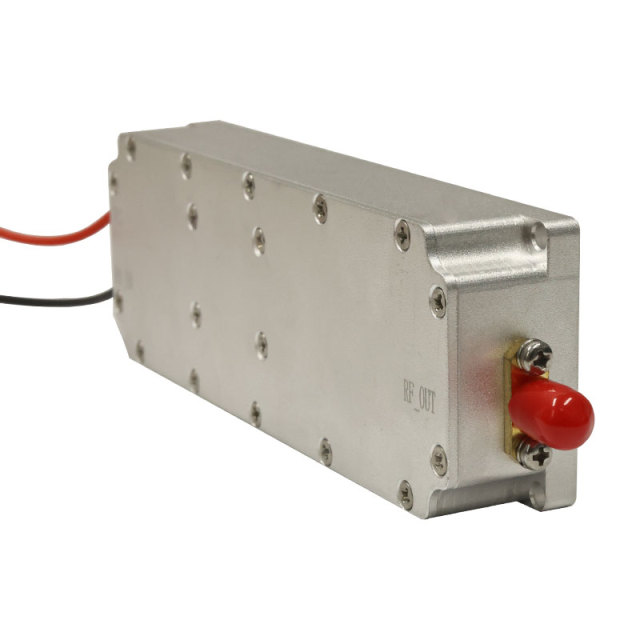

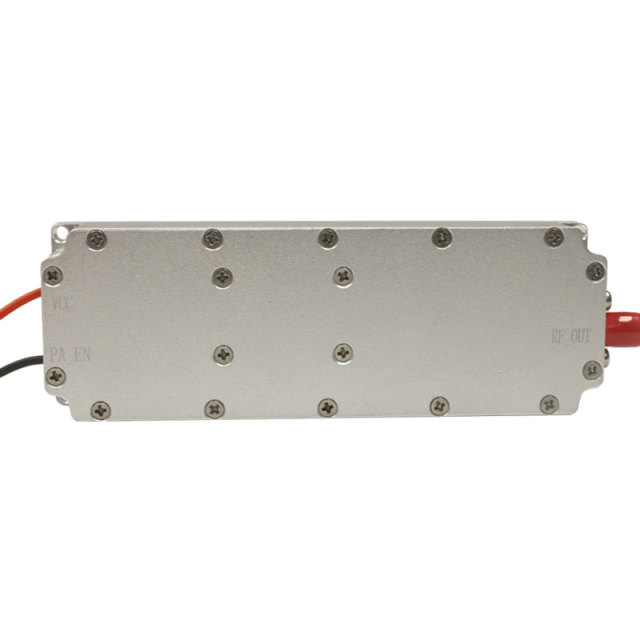

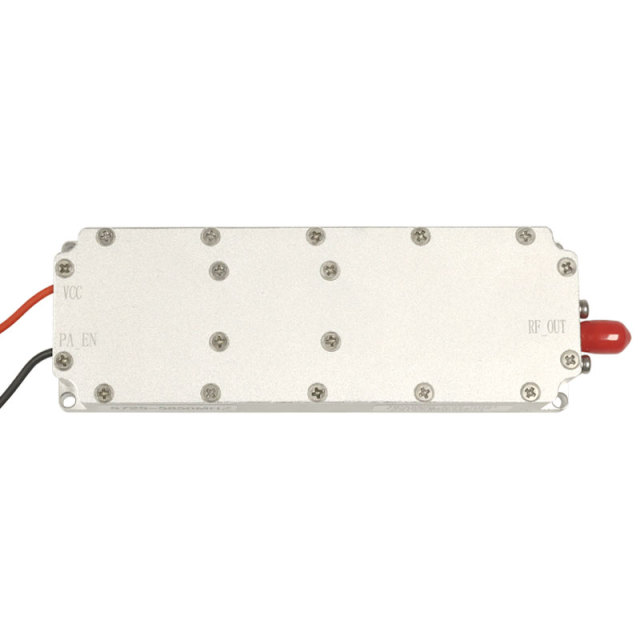

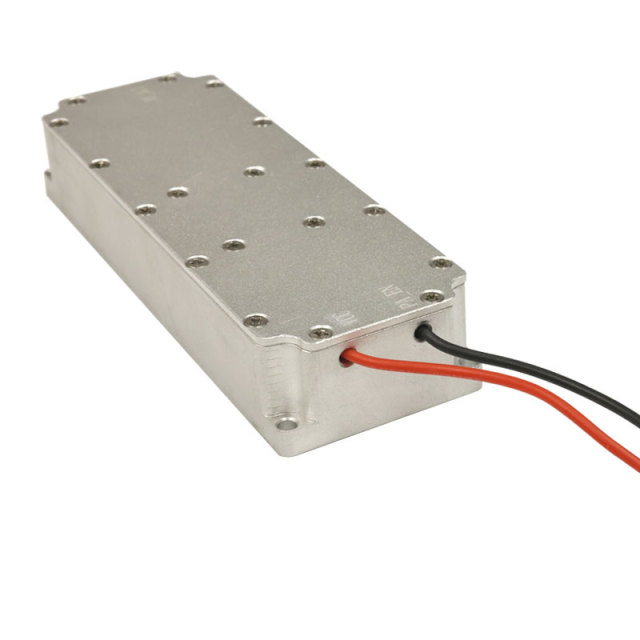

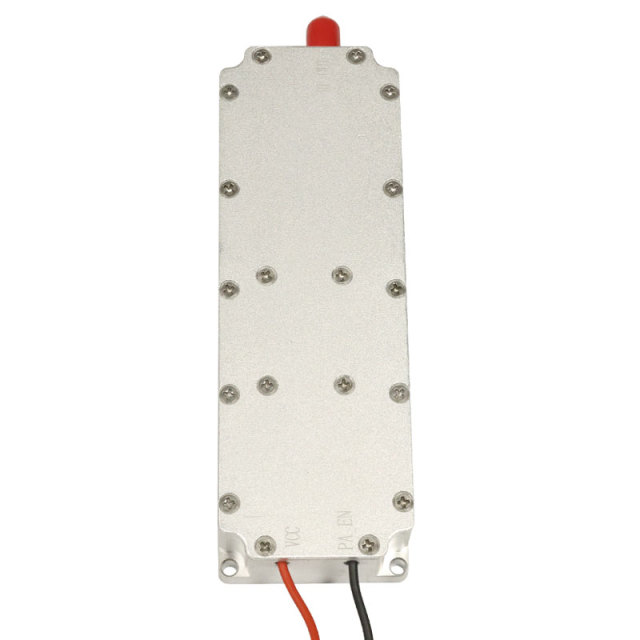

Name: 400-500mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

RF Execution Layer for Networked Counter-UAS Architectures
This 400–500MHz 50W GaN power amplifier module is positioned as a dedicated RF execution layer within a complete anti drone system and broader anti uav system architectures. It is designed for OEMs, system integrators, and engineering teams building layered counter-UAS platforms that separate drone detector, drone detection system, command logic, and RF output into distinct functional tiers. By acting strictly as a governed RF endpoint rather than as an autonomous device, the module supports coordinated operation triggered by verified detection events. This architecture aligns with modern anti drone technology frameworks where sensing, authorization, and RF execution remain logically separated for compliance and reliability.

GaN Power Topology, Band Coverage, and Electrical Behavior
Built on a high-efficiency GaN power stage, the module delivers nominal 50W output within the 400–500MHz band, supporting consistent spectral energy delivery required by professional anti drone jammer platforms. The RF chain emphasizes gain linearity, impedance tolerance, and thermal stability to maintain predictable behavior under continuous duty. Power conditioning, reflected-power handling, and thermal supervision are implemented to protect downstream subsystems. When integrated into an anti drone jammer system by qualified parties, the module’s role remains strictly bounded to RF output under external authorization rather than local autonomous triggering.

System-Level Value in Multi-Sensor Drone Control Networks
For developers of anti drone systems, this module provides a standardized RF block that simplifies system scaling, maintenance planning, and cross-platform integration. It coordinates with upstream drone detection radar system sensors, spectrum analyzers, and centralized command software that manage verification and response authorization. This modularity enables integrators to evolve detection layers without redesigning the RF execution stage, strengthening long-term adaptability of anti uav system deployments across different sites and regulatory environments.

Product Advantages

GaN Power Density for Continuous-Duty RF Stability
The GaN topology used in this anti drone jammer module enables higher power density and improved thermal headroom compared with conventional RF PA structures. Within continuous-operation anti drone systems, this translates to reduced thermal compression and more stable output over time. For system integrators deploying multi-node anti uav system networks, the predictable electrical behavior supports consistent RF planning across varying ambient conditions without frequent recalibration.

Modular RF Subsystem for Multi-Sensor Integration
This module is engineered as a cleanly bounded RF subsystem that integrates with external drone detection system layers, spectrum monitoring tools, and centralized command software. It supports pairing with third-party drone detection radar system sensors and drone detector app interfaces without hardware redesign. This modular approach preserves architectural flexibility in evolving anti drone technology programs where sensing and command logic frequently advance faster than RF execution hardware.

System-Level Authorization and Electrical Safety Governance
Within a complete anti drone jammer system, RF emission authority is governed by centralized logic tied to multi-sensor confirmation and operator authorization. Hardware-level over-voltage, over-current, and thermal protections ensure the RF stage remains within predefined electrical and compliance envelopes. This design philosophy aligns with how anti drone weapons classifications are typically assessed at the system level rather than at individual RF subassemblies.

Use Scenarios

Fixed-Site Security Operators Managing Restricted Airspace
Operators responsible for fixed-site security deployments rely on layered anti drone system platforms combining drone detection system sensors, centralized command, and controlled RF execution. In these environments, this module functions strictly as the RF execution tier driven by verified detection events. Integration with centralized drone detector app monitoring allows supervisors to maintain situational awareness without exposing RF control to field devices, preserving command separation and auditability.

Engineering Teams Validating Multi-Band Counter-UAS Platforms
R&D engineers developing next-generation anti drone technology require controlled RF modules to validate system-level trigger logic, EMC behavior, and thermal performance. This 400–500MHz module supports repeatable bench and chamber testing when paired with simulated drone detection radar system inputs. Its bounded RF role allows teams to isolate RF behavior from sensing and decision logic, accelerating compliance preparation and integration testing.

Integrators Deploying Networked Counter-UAS Nodes
System integrators building distributed anti drone systems across multiple locations require RF modules with uniform electrical characteristics for synchronized operation. When paired with networked drone detection system infrastructure and centralized management software, this module supports consistent response timing and coordinated RF execution across a site network, a core requirement in scalable anti uav system deployments.

400-500mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 400-500MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 400-500MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		400-500	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W
Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base

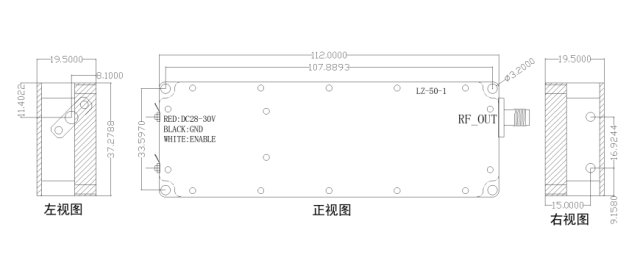

Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g
