Name: 420-455mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

System-Level RF Integration Positioning
This 420–455MHz GaN RF module is positioned as a standardized signal processing and power-stage component within a compliant anti drone system architecture. It is designed for OEMs, platform developers, and system integrators that build layered solutions composed of sensing, data processing, and regulated RF execution subsystems. Within a complete anti uav system, the module functions as a controlled RF interface unit governed entirely by external logic. Its role is defined at the system architecture level rather than at the device level, supporting structured development of compliant drone detection system platforms operating under regulated frameworks.

Electrical Platform Characteristics and Structural Boundaries
The module is based on a GaN power architecture configured for stable RF behavior within its designated frequency segment. Emphasis is placed on electrical consistency, thermal margin management, and impedance tolerance to support predictable system integration. The internal structure is designed to operate exclusively as part of a governed anti drone jammer system under centralized authorization. From a compliance perspective, the unit does not contain independent sensing, targeting, or decision logic, and therefore remains a passive RF execution element inside the broader anti drone technology framework.

Application Value in Regulated System Architectures
For organizations developing compliant anti drone systems, this RF module enables scalable system architecture by decoupling detection, command logic, and RF execution into distinct layers. It supports structured integration with upstream drone detector, signal analysis platforms, and system control software without embedding application logic into the hardware itself. This separation is fundamental for certification workflows, software-defined control strategies, and long-term maintenance planning across evolving drone detection radar system and spectrum-monitoring infrastructures.

Product Advantages

GaN-Based Electrical Stability for Long-Term System Operation
The GaN power topology supports stable electrical output characteristics under extended operational conditions, which is essential for compliant anti drone system platforms operating in regulated RF environments. Compared with traditional RF amplification structures, GaN-based designs offer predictable thermal response and controlled electrical drift. This stability supports long-term deployment planning in anti uav system projects where system calibration consistency and electrical predictability are critical review parameters.

Modular Subsystem Architecture for Platform Compatibility
This module is engineered strictly as a modular RF block that integrates into higher-level drone detection system and command platforms without embedding functional logic. Such modular separation allows integrators to evolve detection algorithms, sensing hardware, or drone detection radar system elements independently from RF hardware. This design philosophy aligns with modern anti drone technology roadmaps where software and sensing layers iterate faster than RF infrastructure.

System-Level Governance and Compliance-Oriented Control
Within a complete anti drone jammer system, RF output authority remains governed exclusively by external platform logic. The module incorporates hardware-level safety constraints—covering power boundaries, thermal thresholds, and electrical limits—to ensure that RF behavior remains inside predefined compliance envelopes. This architecture supports regulatory review processes where anti drone weapons classification, authorization control, and system accountability are evaluated at the platform level rather than at individual RF components.

Use Scenarios

System Integrators Building Layered Counter-UAS Platforms
System integrators developing layered anti drone systems use this module as a standardized RF execution element within platforms that combine sensing, data fusion, and centralized command control. Integration occurs at the architecture level rather than at the tactical level, allowing drone detector, spectrum analysis tools, and system software to govern RF behavior under defined compliance rules. This abstraction supports multi-site deployment consistency and simplified certification pathways.

Engineering Teams Conducting Platform-Level Validation
Engineering teams validating large-scale anti drone technology platforms require RF modules that exhibit consistent electrical behavior under laboratory and field test conditions. This module enables repeatable verification of control logic, power management, and thermal modeling without embedding detection or response logic into the hardware itself. When paired with simulated drone detection radar system inputs and software-defined authorization layers, it supports closed-loop system validation.

Network Operators Managing Distributed Security Infrastructure
Operators responsible for distributed anti uav system infrastructures require RF execution nodes that integrate seamlessly into centralized monitoring and control frameworks. When coordinated with networked drone detection system platforms and drone detector app monitoring interfaces, this RF module supports unified operational visibility while preserving strict separation between user interfaces and RF execution layers.

420-455mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 420-455MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 420-455MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		420-455	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W
Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base

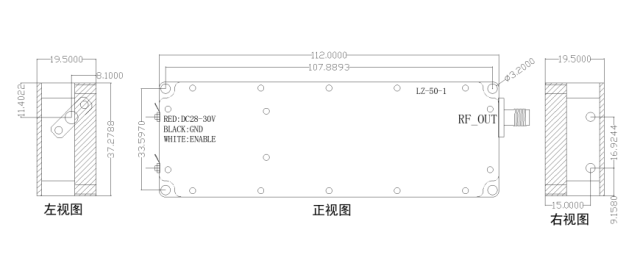

Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g

Connection Instruction
