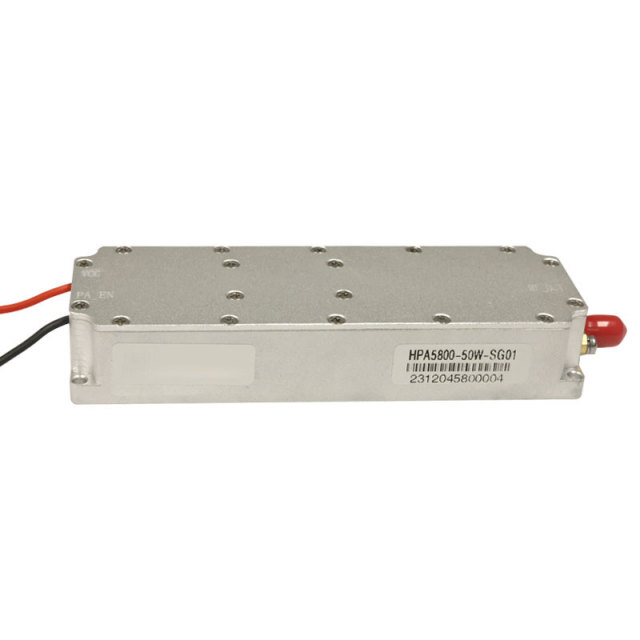

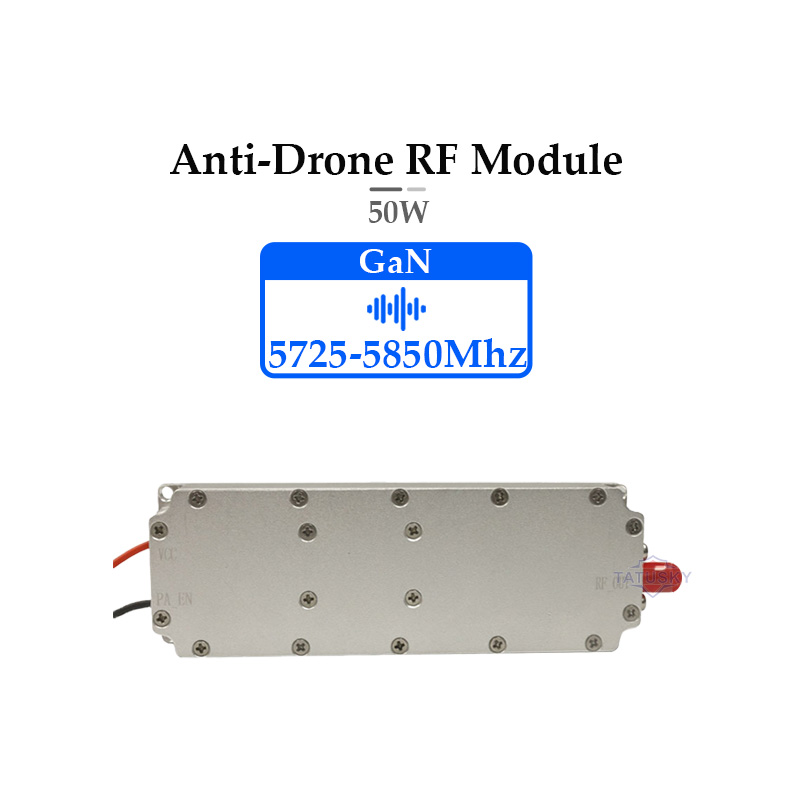

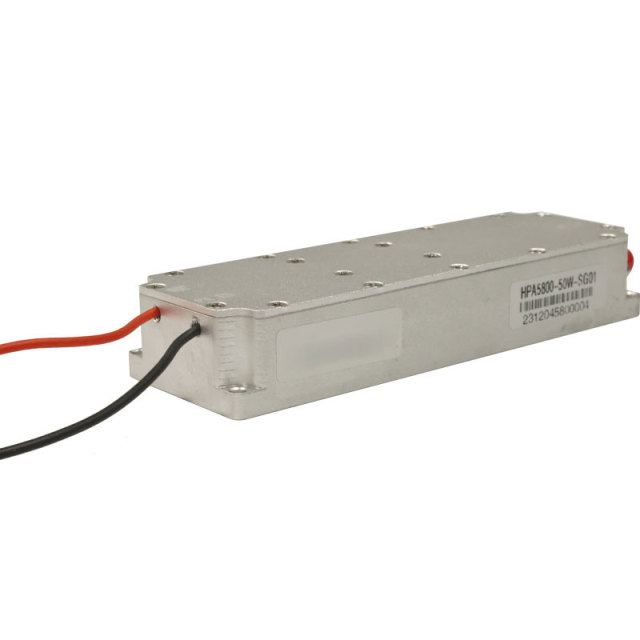

Name: 5725-5850mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

5725-5850mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 5725-5850MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 5725-5850MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		5725-5850	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W

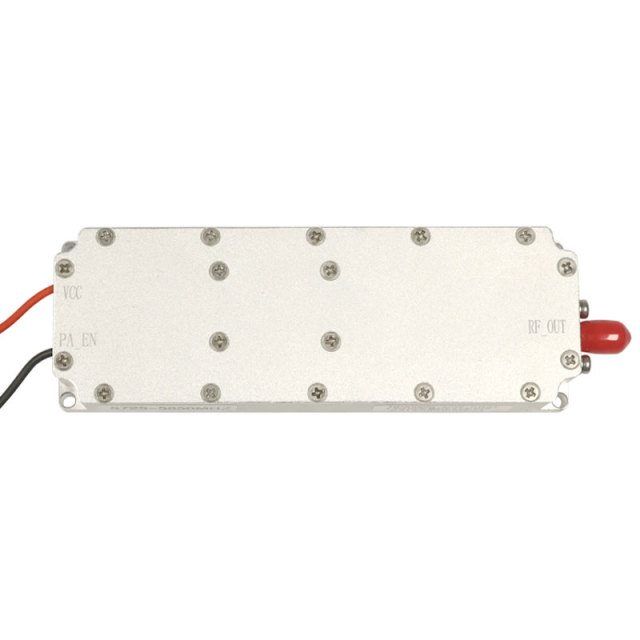

Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base
Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g

Connection Instruction

Company Introduction
Shenzhen tatusky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city ofShenzhen, known as a hub of innovation and technology in China.

Our main products include RF module and ant FPv, which are designed with cuting-edge technology and strict quality control to meetthe diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamlesscommunication in various applications. The anti FPV solution provides effectiveprotection aqamnst unauthonzed nterference anoensures the security and privacy of video transmission.

We provide ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledgein the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the markettrends.

Our manufacturing faclities are equipped with state-of-the-art machinery and adhere to interational qualty standards. This ensuresthat every product leaving our factory is of the highest quality and reliability.
