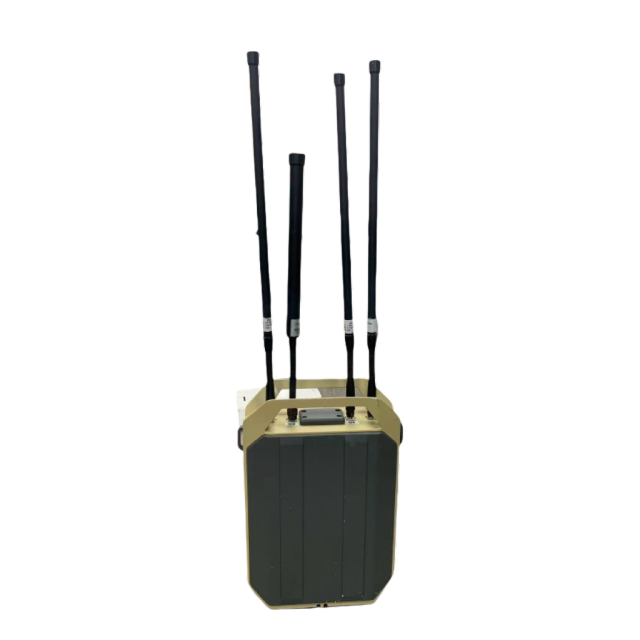

Name: 70mhz-6G Full-scene Drone Detection And Positioning Equipment with Tablet computer to display data
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

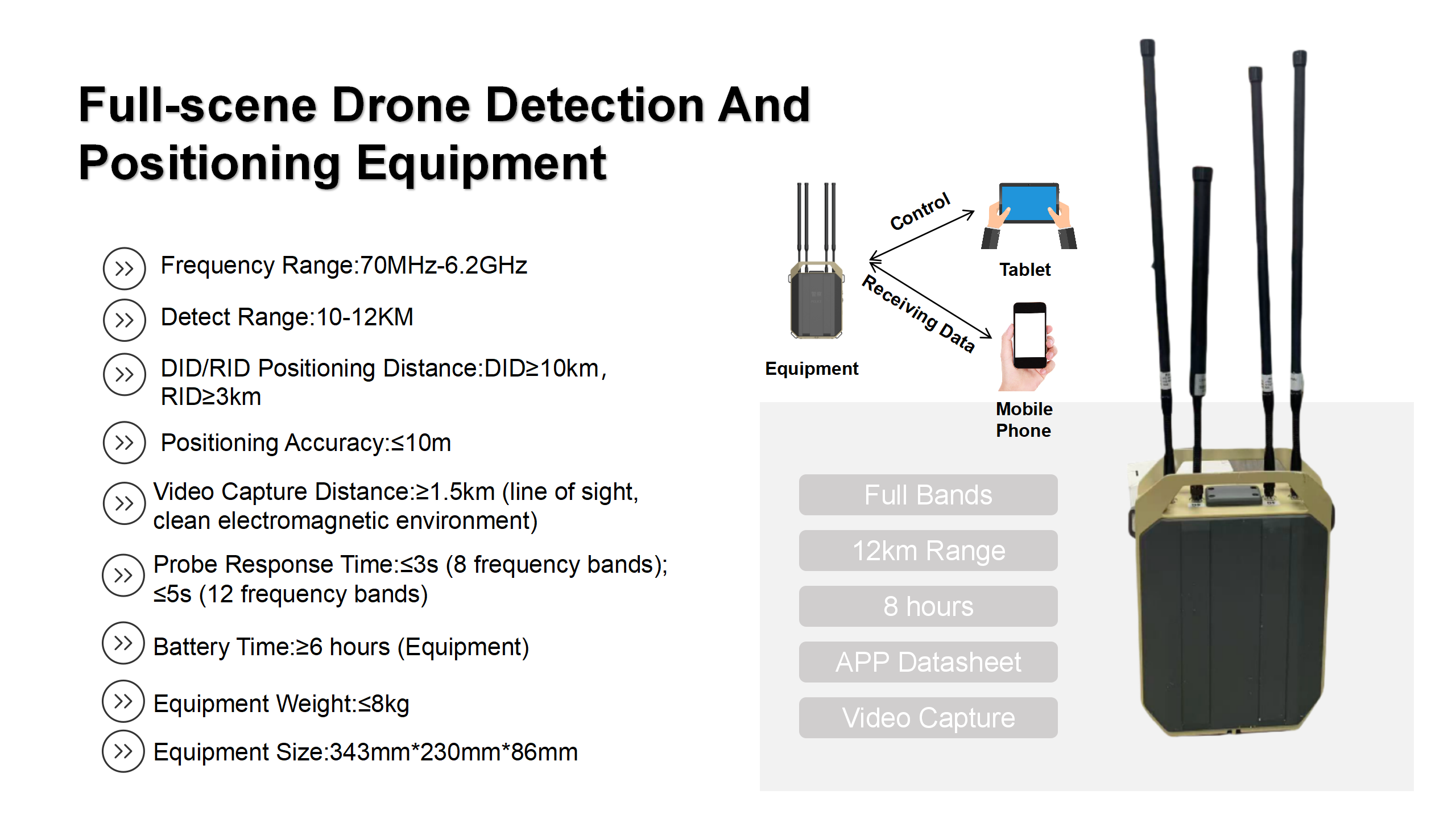

70mhz-6G Full-scene Drone Detection And Positioning Equipment with Tablet computer to display data

Product Specifications

Item	Spec
Identification types	Mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones.
Frequency range	Supports 70MHz-6.2GHz custom scanning (default detection frequency bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz; other frequency bands can be customized);
Positioning model	DJI full series, Dotong part of the model
Detection distance	Mainstream models ≥10km, FPV drone ≥2km
DID/RID positioning distance	DID ≥10km, RID ≥3km
Positioning accuracy	≤10m
FPV image transmission detection	supports all analog image transmission detection in the 500MHz-6GHz frequency band (supports user customization).
Detection radius	≥1.5km (line of sight, clean electromagnetic environment)
Video capture distance	≥1.5km (line of sight, clean electromagnetic environment)
Detection response time	≤3s (8 frequency bands); ≤5s (12 frequency bands)
Power supply method	Lithium battery power supply
Battery life	≥6 hours (host)
Device weight	≤8kg
Device size	343mm230mm86mm (lengthwidthheight)

Product Function

Full-band detection: 70MHz-6.2GHz full-band detection

Analysis and positioning: monitor the multi-dimensional information such as the position (latitude, longitude, azimuth), speed, track, remote control position (latitude, longitude, azimuth) of the drone

FPV video capture: all analog image transmission capture functions can view the "first-person perspective" analysis of FPV intrusion targets and real-time dynamics

Super strong detection capability: detection and cracking distance up to 12km

Multi-terminal alarm push: multi-mobile alarm information push, team collaboration, efficient response

Multi-scenario use: support multiple usage methods such as backpack, fixed, and vehicle-mounted

Product Information

No.	Product Name	Picture	Unit	Size(mm)	Weight(kg)
1	Host		1	400165500mm	1kg
2	Detection Antenna		4	16mm*400mm	0.85kg
3	Charger		1	/	0.25kg
4	Backpack		1	337*475mm	0.65kg
5	Detection host aviation box		1	/	1.4kg

Company Profile
We bring over a decade of expertise as custom manufacturers in the counter UAV industry, backed by 6 years of specialized experience. With nearly 6 years dedicated to counter drone production and over 10 years successfully operating overseas, we've delivered hundreds of products globally. Leveraging our established reputation and robust presence in the counter drone sector, we've forged extensive partnerships with anti-drone companies and factories. Drawing from our team's accumulated decade-long expertise in counter drone technology and project management, we deliver products and services tailored to the evolving needs of drone countermeasures.

FAQ

1.Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
