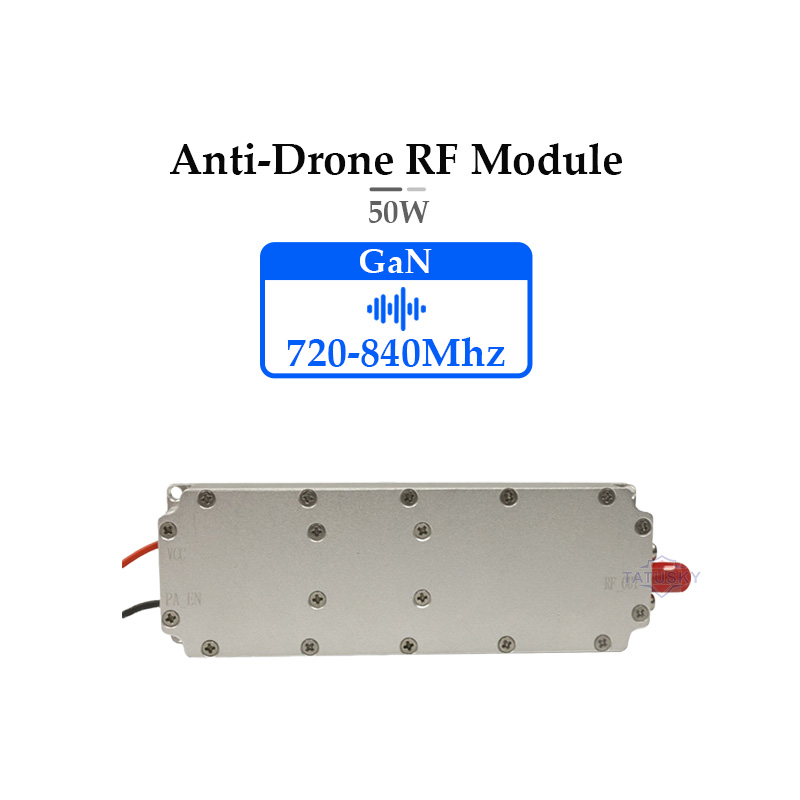

Name: 720-840mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

Advanced Functional Integration for Anti-Drone System Developers
The 720-840MHz 50W GaN Anti-Drone Module Counter FPV is engineered for professional anti drone system developers and integrators seeking reliable RF amplification. Designed primarily for high-power interference within the 720-840 MHz frequency band, this module supports both military-grade and commercial anti drone initiatives with compatibility for portable or embedded deployments. Its tailored output makes it a core component for companies specializing in anti drone jammer system development and in creating sophisticated anti uav system solutions, facilitating precise countermeasure implementations against unauthorized drone incursions.

Technical Excellence with Measurable Specifications
Utilizing Gallium Nitride (GaN) technology, the module delivers a maximum output power of 47±0.5 dBm across 720-840 MHz with a gain around 47±1 dB, assuring efficiency ≥60%. Operating from a 30 V supply with a minimum current of 3.7A, the device ensures stable performance in temperature ranges from -10 to +55 °C. Its compact form factor (37.3×112×19.5 mm) and SMA RF connector enable straightforward integration with anti drone devices and avionics hardware, all while maintaining passband ripple under 2 dB. This technical consistency is essential for controlled jamming in complex RF environments within the anti-drone market.

Industry Applications in Security and Defense Sectors
This module supports deployment across sectors demanding high-precision electronic warfare, including law enforcement and military operations utilizing anti drone weapons and anti drone radar systems. Its capability to interface with FPV countermeasure platforms benefits systems designed for targeted drone tracking and neutralization in perimeter security or sensitive infrastructure defense. Additionally, its suitability for field testing and integration positions it as a vital component in research labs focused on innovation in arma anti drone technologies, enhancing compliance and operational effectiveness within evolving regulatory frameworks.

Product Advantages

Optimized Structural Design for Modular Integration
The module’s compact enclosure and standardized SMA connector facilitate seamless integration into existing anti-drone system architectures, allowing layered deployment with larger jamming or detection platforms. Built with domestic core components, its structural design emphasizes reliability and replicable performance for system manufacturers focusing on scalable anti drone technology development. The module’s size and weight make it adaptable to both fixed installations and portable anti drone jammer systems, enabling rapid reconfiguration or upgrades without compromising hardware integrity.

High-Performance Delivery Enhancing User Control and Reliability
Operating with ≥60% efficiency and consistent output power, this power amplifier module supports precise signal control critical for effective drone interference operations. The stable gain performance over varying ambient conditions reduces risk of system failure during critical engagements in anti uav deployments. Its user-centric design includes easily managed supply voltage and current specifications, lowering integration barriers for OEMs and improving overall operational uptime for security teams employing anti drone defense system configurations.

Use Scenarios

Integration in Law Enforcement Counter-Drone Operations
Within law enforcement environments, the module plays a critical role in enhancing drone detection radar system efficacy paired with anti drone jammer units to neutralize unauthorized drone activity near public events or restricted areas. Its stable performance under varied temperature conditions ensures compliance with operational mandates while supporting real-time intervention workflows. Integration into portable or vehicle-mounted systems allows seamless deployment alongside police drone detector app technologies, advancing coordinated drone mitigation capabilities essential for public safety enforcement.

Deployment in R&D and Field Testing for Anti-Drone Platforms
In research and development facilities, the module provides accurate RF amplification for testing and validation of new anti drone technology designs and prototypes. Its measurable specifications enable precise calibration within laboratory setups simulating real-world scenarios, offering manufacturers the ability to refine anti drone radar and anti drone jammer system responses. The product’s compact footprint supports integration into multiple test rigs and field deployable units, ensuring efficient assessment of system performance and regulatory compliance during product development cycles.

720-840mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 720-840MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 720-840MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		720-840	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W
Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base
Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g

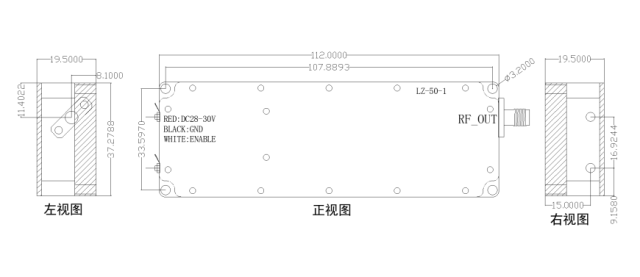

Connection Instruction
