Test item |
Parameter |
Unit |
Remarks |
||
|
Working Voltage |
28 |
V |
24-30V |
||
|
Transfer Efficiency |
≥42% |
% |
@100W typical |
||
|
Controlled output power |
50W～100W |
W |
The Software sets the power level |
||
|
The ALC power adjustment range |
≥30 |
dB |
Pressure control attenuation |
||
|
Gain |
50±1.0 |
dB |
|
||
|
Intra-band fluctuations |
≤2.5 |
dB |
Peak-to-peak value |
||
|
Spurious emissions
|
Work within the belt |
≤-15dBm/1MHz |
dBm |
Center frequency plus CW signal to the maximum output power measurement |
|
|
Work out-off-band |
9KHz～1GHz |
No noise above normal |
dBm |
|
|
|
|
1G～12.75GHz |
|
dBm |
|
|
|
Maximum allowable input power |
≥+10dBm |
dBm |
For 1min without damage |
||
|
Input voltage standing wave ratio |
≤1.35 |
|
Add + 28V, standard network output-10 dBm |
||
|
Output voltage standing wave ratio |
≤1.30 |
|
Without power supply, the output of the standard grid is-10 dBm |
||
|
|
≤1.35 |
|
Power-up, bidirectional coupler test |
||
|
High and low temperature test
|
Working environment temperature: (℃) |
-10～+65 |
℃ |
Low temperature can start and monitoring is normal |
|
|
Gain stability |
±1.5 @-40℃～+65℃ |
dB |
|
||
|
Power stability |
±1 @-40℃～+65℃ |
dB |
|
||
|
Power supply requirements |
≥8A @+28V dc ； |
|
Continuous W output 100W |
||
|

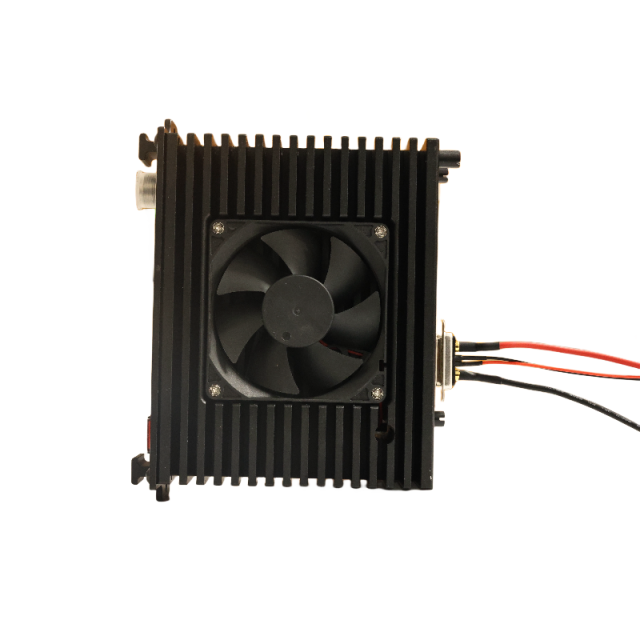

Power supply interface, monitoring interface RS485 |
7W2 |
|
Public head |
||
|
RF output connector |
N-F connect |
||||
|
LCD liquid crystal display |
Display the frequency, power, and switch status |
||||
|
With 3 LED lights |
POWER: Power indication; RUN: operation indication; ALARM: alarm indication; |
||||
|

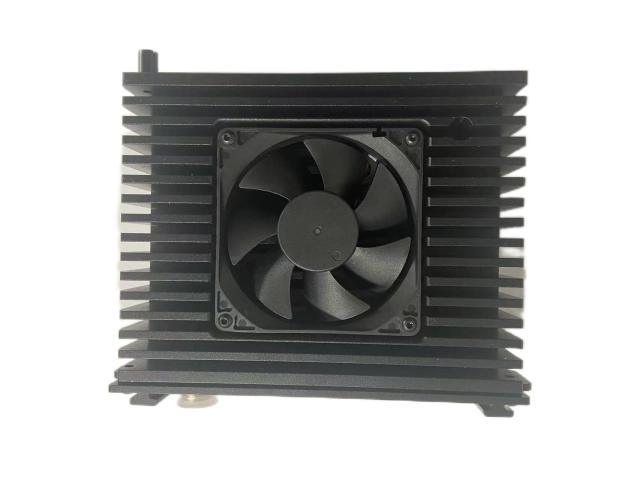

Bring your own cooling fan |
The module can be run separately |
||||
|
Appearance size |
155 x 125 x 60mm |
||||
|
Weight |
1.6Kg |
||||
|

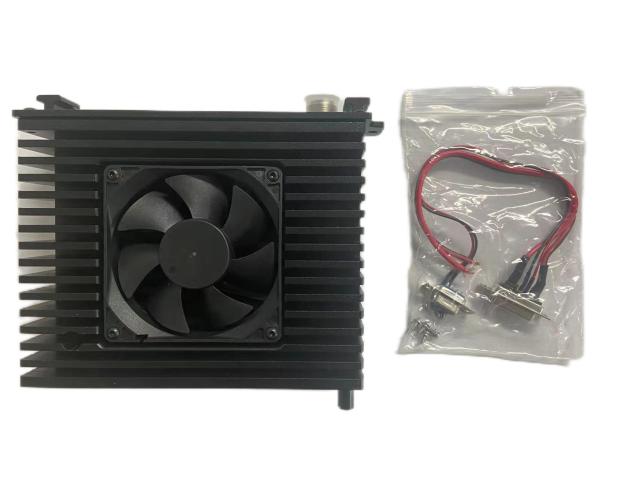

Appearance and shape (usage mode) |
Black all-in-one module with fan (used alone or portable) |
||||
Module Software Settings
|
Monitoring function |
Description |
Remarks |
|
|
Set the parameters of the power amplifier part
|
Power switch |
Turn on or off the broken power amplifier |
|
|
Alarm switch |
Turn on and block the alarm functions |
|
|
|
Downward power control |
The maximum output power of the power amplifier can be set, the adjustment range is 20dB, and the high and low power levels can be set |
|
|
|
Work let go of the warning |
High temperature power amplifier closing threshold can be set, power amplifier temperature exceeds 85 degrees, automatically closed; 65 degrees automatically restored |
|
|
|
Power pass power alarm |
The actual power value is 2dB higher than the downstream ALC control threshold |
|
|
|
Work in the alarm |
If the amplifier standing wave detection is greater than 4, the amplifier automatically turns off |
|
|
|
Work to let go of the police |
If the amplifier detection current exceeds 12A, the amplifier automatically turns off |
|
|
|
Power amplifier under power alarm |
Power amplifier detection power is less than 37 dBm, showing the under power alarm |
|
|
|
Work let go of pressure alarm |
When the amplifier voltage exceeds 32V, the amplifier is automatically turned off |
|
|
|
Query parameters of some power output
|
Power switch status |
If the power amplifier is set with OFF, the query should be a power amplifier State; otherwise is the open power amplifier state |
|
|
Downlink output power level value |
Detection amplifier output power value, detection range (Pomax + 2, Pomax-20) |
Detection accuracy: Pout ± 1dB |
|
|
Downward Poppy value |
The standing wave is 1.2, and the query value is 4.0 |
|
|
|
Temperature query |
Test the internal temperature of the module, the detection range: -40℃ ~ + 100℃ |
Detection error: ± 3℃ |
|
|
ALC value query |
Display values are equal to the actual set ALC values |
|
|
|
Voltage detection |
Test the module operating voltage |
|
|
|
Current detection |
Test the module operating current |
|
|
|
Signal source settings
|
Frequency setting mode 1 |
Any single-frequency point setting within the range |
The frequency setting accuracy is 1M, the maximum frequency bandwidth is 500M, and the highest is 6G |
|
Frequency setting mode 2 |
Set the broadband sweep mode, frequency, interval, step and other parameters can be set |
|
|
|
Frequency setting mode 3 |
Set any four sub-frequency segments in the bandwidth, and the single order segment needs to be increased |
|
|
|
Module communication |
RS485 |
|
|
|
Interface definition |
+: 28V, -: GND; control bit 1:485A, 2:485B |
||
