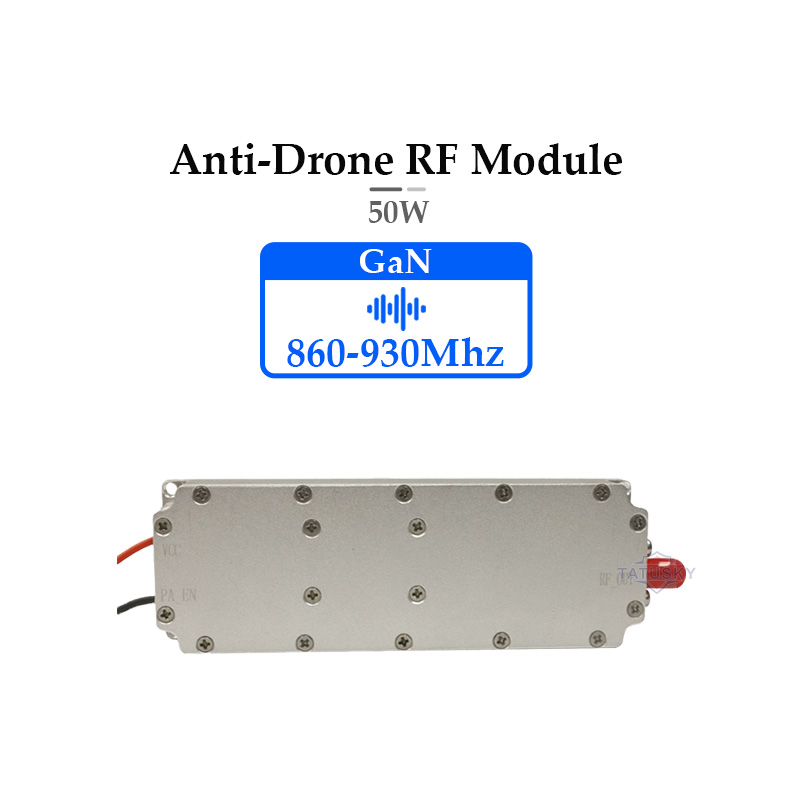

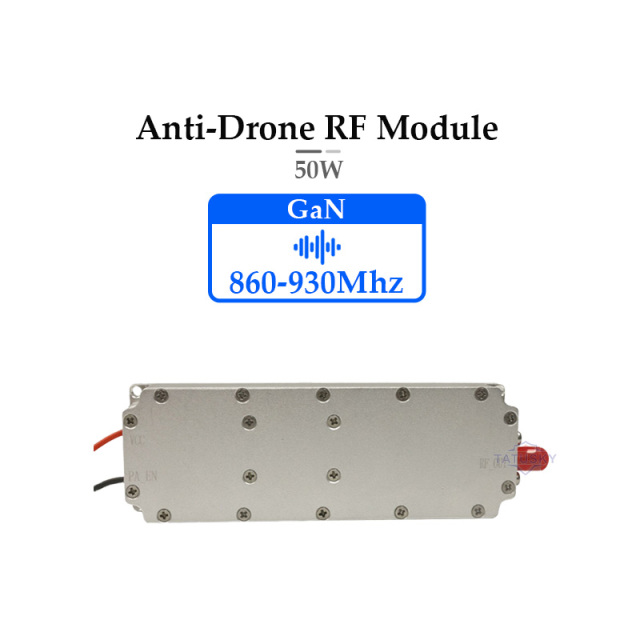

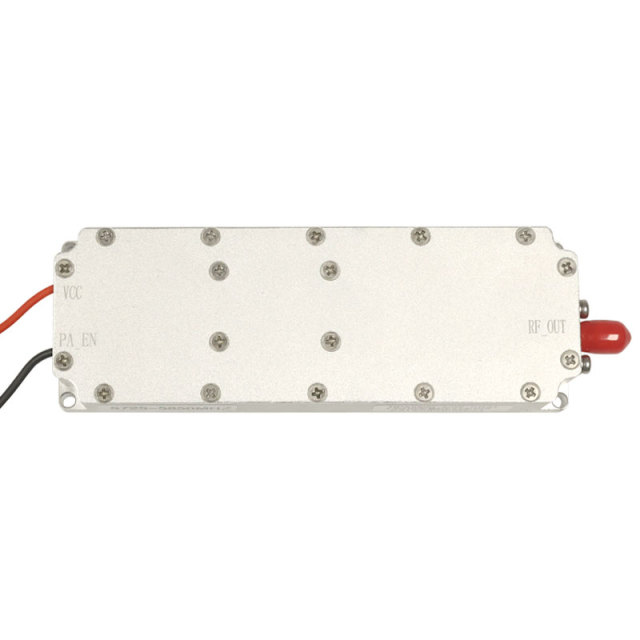

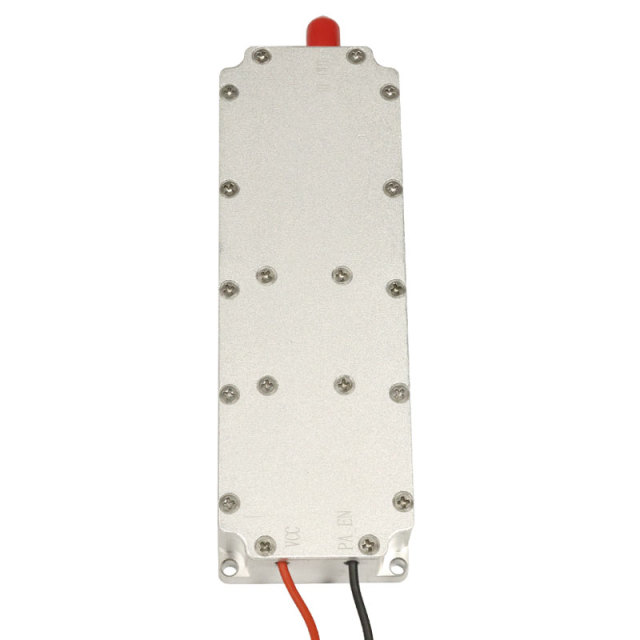

Name: 860-930mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv
Brand: Tatusky--Anti Drone Solution
Availability: InStock
Rating: 5 (1 reviews)

SPECIFICATION

860-930mhz 50W PA GaN Anti Drone Module Counter Fpv Anti Fpv Anti Drone DJI Mavic Counter Fpv

Product Introduction
The power amplifier uses domestic core key components and can operate normally at temperatures of -10～+55°C.

This document stipulates the radio frequency and monitoring technical indicators of the 860-930MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

This document applies to all aspects of product design, verification, production and quality inspection of the 860-930MHz 50W power amplifier module.

Product Parameter

Test Item		Indicator	Unit	Remark
Frequency Range		860-930	MHz	Built-in interference source
Working Voltage		30	V	24-30V
Max Output Power		47±0.5	dBm	400-470MHz 50W@≤3.4A
Working Efficiency		≥60	%
Gain		47±1	dB	peak-to-peak value
Passband Riplpe		≤2	dB	peak-to-peak value
High-Low Temperature Test	Working Temperature（℃）	-10～+55	℃	It can start at low temperatures
	Gain Stability	±1.5 @-40℃～+55℃	dB
	Power Stability	±1.5 @-40℃～+55℃	dB
Power supply requirements		≥3.7A@+30Vdc；		Continuous wave output 50W
Power supply interface				Red + and Black -
Enable				White line high level on, low level off
RF Connector		SMA		SMA external screw base
Size		37.311219.5mm	mm	Excluding SMA
Weight		160	g

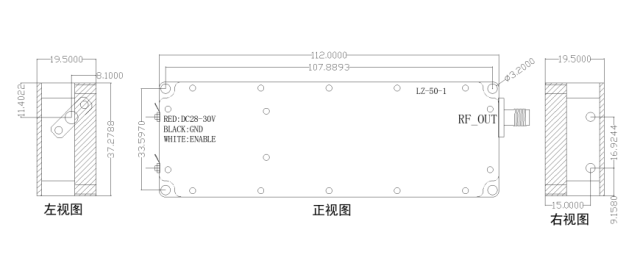

Connection Instruction
