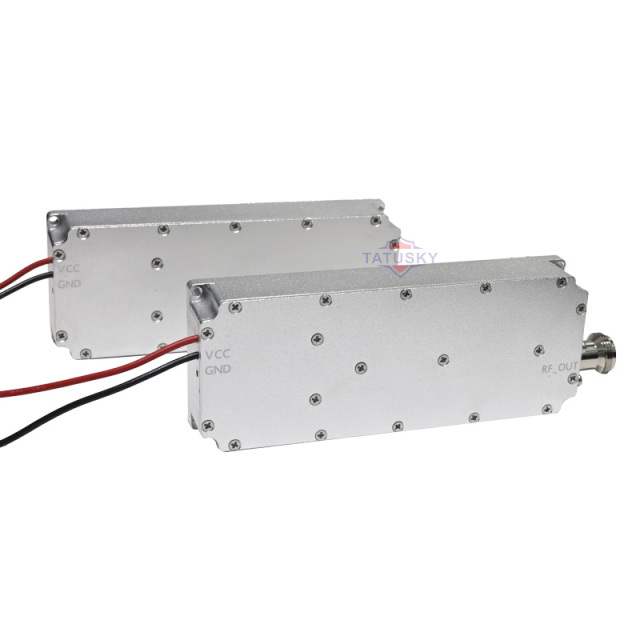

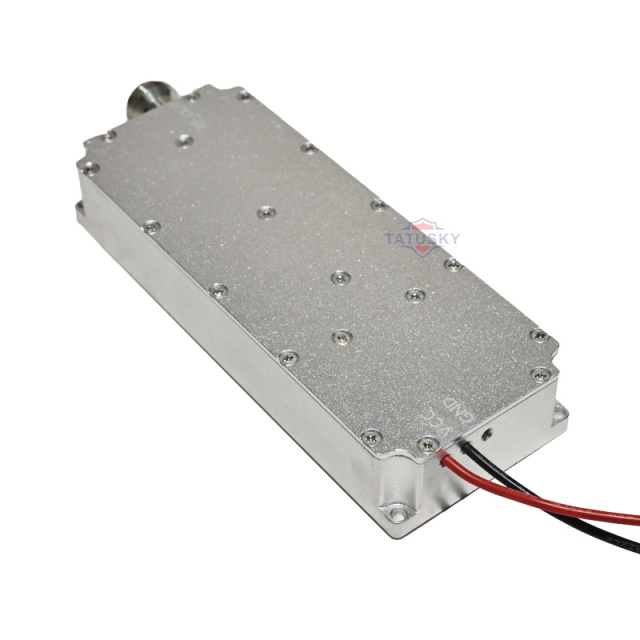

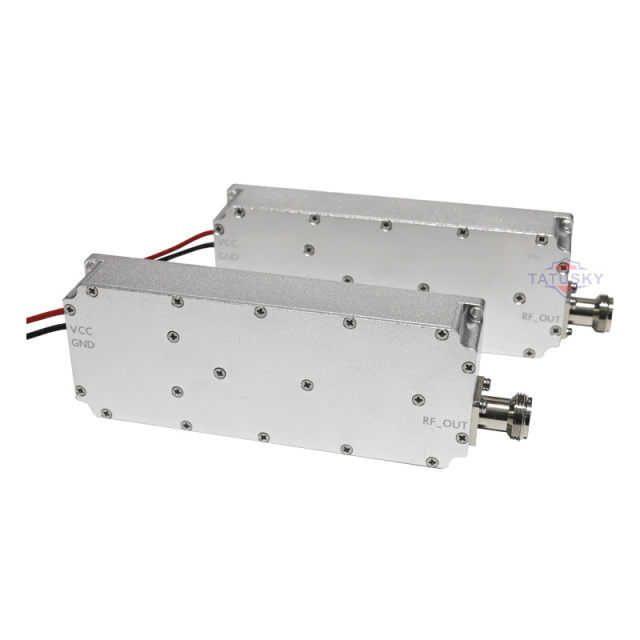

Model: TTSK-TZ-GAN-9
Frequency Range:400-3000 MHz
Output Power: 80W
|
Test Item |
Indicator |
Unit |
Remarks |
|
|
Frequency Range |
300-4000 |
MHz |
Bandwidth not exceeding 120 MHz for 400-1600mhz
Bandwidth not exceeding 200 MHz for 1600-3000mhz |
|
|
Operating Voltage |
30 |
V |
24-32 V |
|
|
Maximum Output Power |
49±0.5 |
dBm |
80 W @ ≤5.5 A |
|
|
In-band Fluctuation |
≤2 |
dB |
Peak-to-peak |
|
|
High and Low Temperature Test
|
Operating Ambient Temperature |
-10～+55℃ |
℃ |
Capable of starting at low temperature |
|
Power Stability |
±1.5@-40℃~ +55℃ |
dB |
|
|
|
Gain Stability |
±1.5 @ -40℃～+55℃ |
dB |
|
|
|
Power Supply Requirement |
≥5.5 A @ +30 Vdc |
|
80 W continuous wave output |
|
|
Power Supply Interface |
-
|
|
Red for positive/B+, black for negative/B- |
|
|
Power Amplifier Enable |
- |
|
White wire: Turn on at high level, turn off at low level |
|
|
RF Input Connector |
SMA |
|
SMA outer threaded female connector |
|
|
RF Output Connector |
N |
|
N outer threaded female connector |
|
|

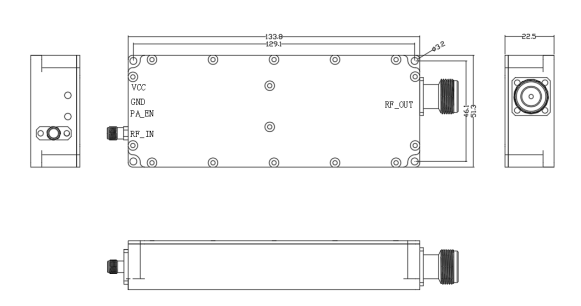

Dimensions |
133.8*51.3*22.5MM |
mm |
Excluding connector |
|
|
Mounting Hole |
129.1*46.1 |
mm |
M3.0*4 |
|
|
Weight |
750 |
g |
||
Mechanical Specifications
