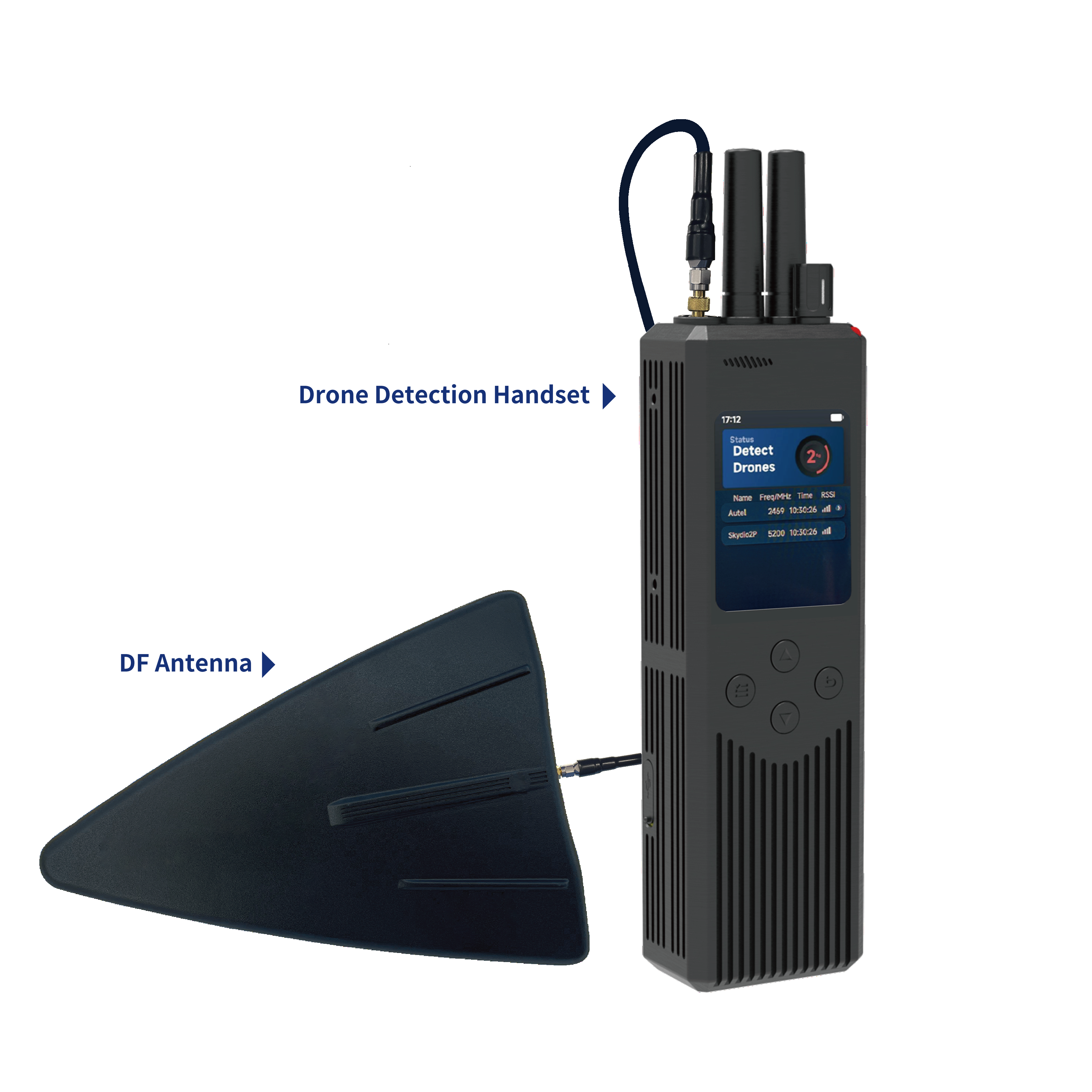

Handheld Drone Detection And Direction Finding Equipment
| Item |
Specification |
| Frequency |
2.4GHz/5.8GHz |
| Detect Range |
700-1200M(No DF Antenna)
2000-3000M(With DF Antenna) |
| Compatible Drones |
DJI,Autel,FIMI,Yuneec,Hubsan,FPV and racing drone models |
| Endurance |
6 Hours |
| Working Temperature |
-20℃~55℃ |
| IP Rating |
IP65 |
| Size |
235*66*43MM |
| DF Antenna L*W |
300*217MM |
| Weight |
1.6KG |
| Directional Finding(DF) Error |
Azimuth error<17.5°(With 1KM Range) |
Function Description
1.Real-time detection function:The equipment can display the number,brand,model and operating frequency of detected drones in real time;
2.Direction-finding function:The equipment has a direction-finding mode.After the equipment is equipped with a direction-finding antenna,the equipment is equipped with a direction-finding antenna,the equipment can perform direction-finding on the UAV target;
3.Sensitivity adjustment function:The equipment supports adjusting the singal recognition threshold by adjusting the detection sensitivity option;
4.Low battery reminder function:Equipped with multi-level battery display,when the battery is too low,it will give an alarm prompt;
5.Alarm mode configuration function:Support multiple alarm modes such as light and sound,and the urgency of the alarm ringtone is adjustable.

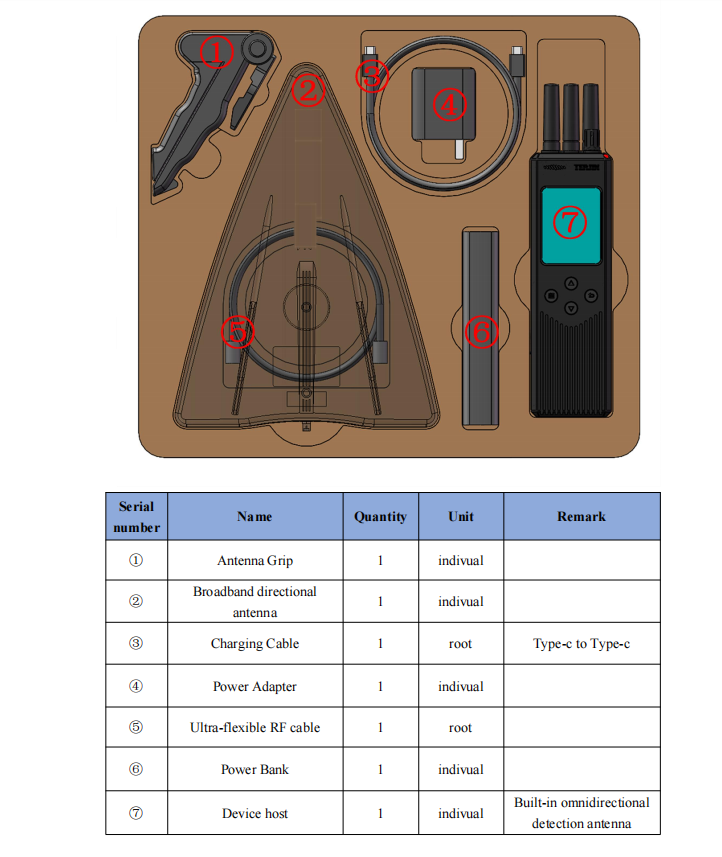

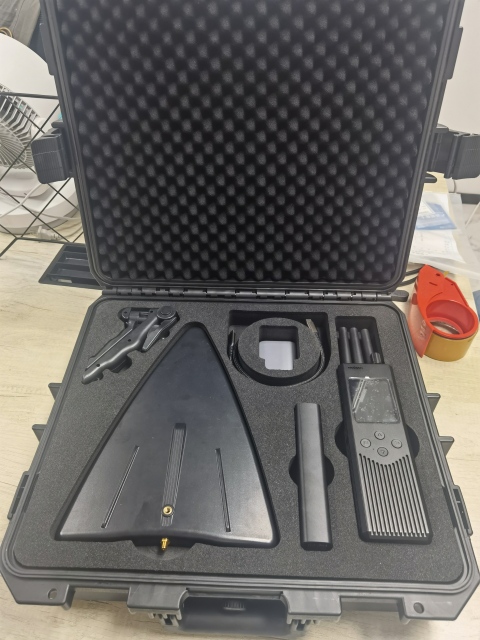

Product configuration
