Optimized for Tactical Security and Surveillance Operators
This handheld and directional detection solution is designed to serve law enforcement, security teams, and facility operators requiring rapid, on-site drone identification and localization. The portable detector supports real-time surveillance of unmanned aerial vehicles in complex, dynamic environments. The system’s adaptability enables integration with broader anti drone systems and fits the operational demands of rapid deployment for perimeter security, event protection, and emergency response workflows. By providing both short-range handheld monitoring and extended direction-finding capabilities, it targets users who need reliable and immediate drone source tracking in field conditions.
Advanced Signal Analysis and Direction-Finding Specifications
Technically, the device supports 2.4 GHz and 5.8 GHz frequency bands with detection ranges from 700 to 1200 meters without the directional-finding antenna, extending to 2000-3000 meters with it. The system offers configurable sensitivity and multi-mode alerts (visual and auditory), complemented by battery level monitoring for operational continuity up to six hours. Compact dimensions (235×66×43 mm) and IP65 protection enable rugged use in temperatures from -20°C to 55°C. Direction-finding accuracy and antenna specs (300×217 mm) ensure precise azimuth error margins, instrumental for pinpointing UAV sources efficiently, which is critical for integration into enterprise-grade anti drone technology platforms.
Enhancing Security Protocols Across Diverse Industries
The device is well-suited for industries requiring stringent airspace security, including government facilities, critical infrastructure, airports, and event management. It facilitates operator training, real-time drone threat detection, and investigative source localization in security operations. By supplementing fixed anti uav systems and enabling portable sweeps, it enhances the layered defense strategy in sensitive environments. This solution delivers actionable intelligence for rapid decision-making and supports compliance with regulatory enforcement against unauthorized UAV activity, optimizing risk management and operational integrity.
Product Advantages
Modular Design and System Integration Flexibility
The structural design balances portability with robust environmental protection (IP65), facilitating deployment across diverse operational scenarios. The combination of handheld and directional antenna technologies allows modular use depending on mission needs. Compact form factor and lightweight construction promote ergonomic handling for field operators, while configurable multi-level alarms and real-time data outputs facilitate seamless integration with existing anti drone defense systems and drone detection radar systems. This modularity also permits deployment in coordinated multi-layer security architectures typical of leading anti drone companies.
Performance Reliability and Operator-Focused Usability
Performance optimization is evident through adjustable sensitivity controls, ensuring precise detection signatures with minimal false positives. Battery endurance supports extended missions without interruption, essential for continuous security monitoring. User interface features such as configurable audio-visual alarms and low battery notifications improve operator situational awareness and workflow efficiency. The device’s ruggedness and operational temperature tolerance provide reliability in harsh outdoor conditions, offering end users dependable coverage and enhancing overall investment value in critical drone defense technology portfolios.
Use Scenarios
Real-Time Surveillance in Public Event Security
In large-scale public events where drone threats pose safety and privacy risks, this handheld and directional anti drone device ensures rapid detection and localization of unauthorized UAVs. The device operates effectively in open and complex environments, detecting drones within a range of up to 3000 meters when equipped with the directional-finding antenna. Its portability allows security teams to conduct dynamic sweeps and immediate source tracking, contributing to risk mitigation and compliance with public safety regulations. Integration with fixed anti drone radar and command platforms enhances coordinated response capabilities during critical incidents.
Application in Critical Infrastructure Protection
Protecting sensitive installations like power plants and transport hubs demands continuous aerial surveillance. This system provides mobile detection and tracking capabilities necessary for supplementing stationary anti uav systems, enabling security personnel to identify and mitigate drone incursions proactively. Its ruggedized design and operating range suit varied environmental conditions typical of industrial perimeters. By delivering precise directional data and real-time threat alerts, the device supports facility security protocols, ensuring operational continuity and regulatory compliance through comprehensive drone threat management workflows.

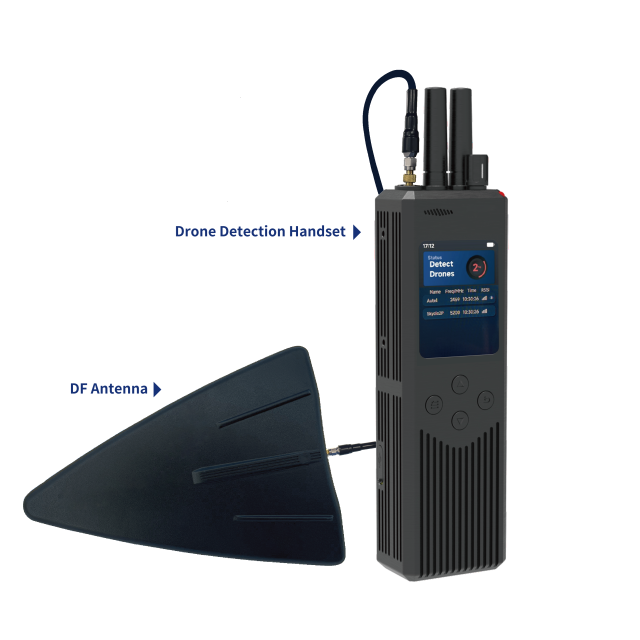

Handheld Drone Detection And Direction Finding Equipment
| Item | Specification |
| Frequency | 2.4GHz/5.8GHz |
| Detect Range | 700-1200M(No DF Antenna) 2000-3000M(With DF Antenna) |
| Compatible Drones | DJI,Autel,FIMI,Yuneec,Hubsan,FPV and racing drone models |
| Endurance | 6 Hours |
| Working Temperature | -20℃~55℃ |
| IP Rating | IP65 |
| Size | 235*66*43MM |
| DF Antenna L*W | 300*217MM |
| Weight | 1.6KG |
| Directional Finding(DF) Error | Azimuth error<17.5°(With 1KM Range) |

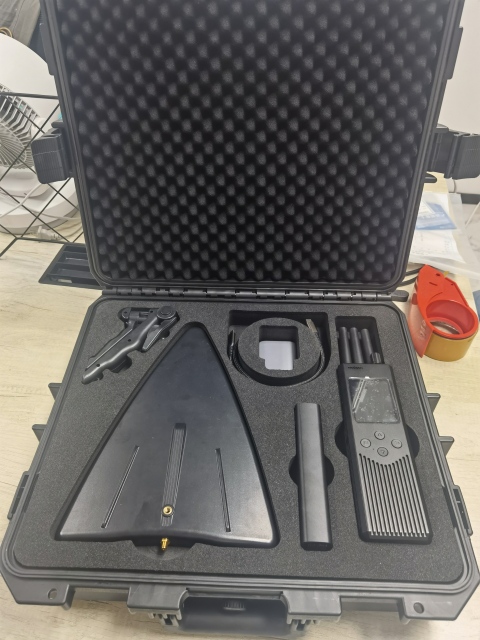

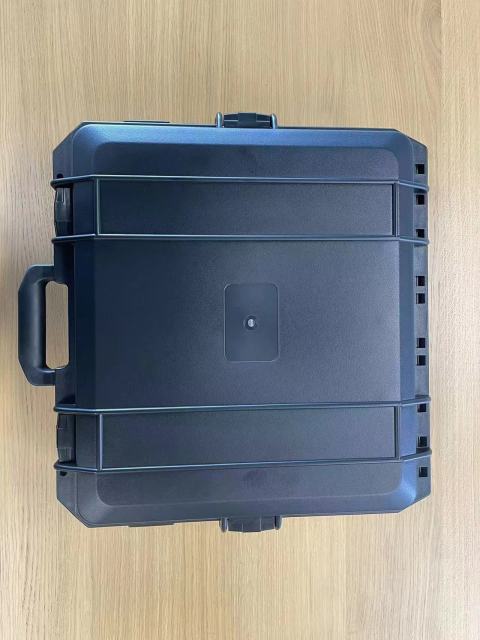

Product configuration
About Us
TATUSKY TECHNOLOGY CO., LIMITED is dedicated to providing cutting-edge solutions for drone threat mitigation. Our Wearable 1-Band Handheld Drone Jammer is a testament to our commitment to innovation and security. Designed for single-operator use, this portable device offers a powerful defense against drone threats, ensuring effective disruption of signals within critical frequency ranges. Ideal for security personnel in field operations, it combines mobility and reliability for personal defense against unmanned aerial vehicles (UAVs). With a frequency range of 700-1000MHz, waterproof IP68 rating, and lightweight aluminum construction, our jammer is built to withstand challenging environments. TATUSKY TECHNOLOGY CO., LIMITED's focus on efficiency and transformation empowers industries to safeguard their operations with ease and confidence. Join us in our mission to deliver unparalleled anti-drone solutions that meet the demands of modern security challenges.
Contact TATUSKY TECHNOLOGY CO., LIMITED today to upgrade your security operations with the Wearable 1-Band Handheld Drone Jammer – Portable, Single-Operator Anti-Drone Solution. Let’s enhance your defense against UAV threats!
FAQ
What is the typical detection range of the handheld and directional detection devices?
The devices detect drones within 700–1200 meters without the DF antenna, and extend up to 2000–3000 meters when the directional finding (DF) antenna is used. This broad range supports effective monitoring in various operational environments, essential for an accurate drone detection system.
Can these detection devices be customized for specific operational needs?
Yes, the device’s sensitivity is adjustable, allowing operators to tailor detection thresholds per mission requirements. Configurable alarm modes—for light and sound—and multi-level battery alerts ensure reliable performance in tailored anti drone systems.
What maintenance considerations should be taken for these detection devices?
The devices are rugged with an IP65 rating, suitable for harsh conditions. Regular checks include battery status and antenna connections to maintain optimal function. Proper storage and handling extend operational life, which is critical for any durable anti drone technology equipment.
How is the handheld detection device integrated into broader security systems?
These devices are designed to supplement and integrate seamlessly with existing anti drone defense systems, providing real-time drone identification and source localization. They support coordinated response efforts by sharing signal data and directional information with command centers.
