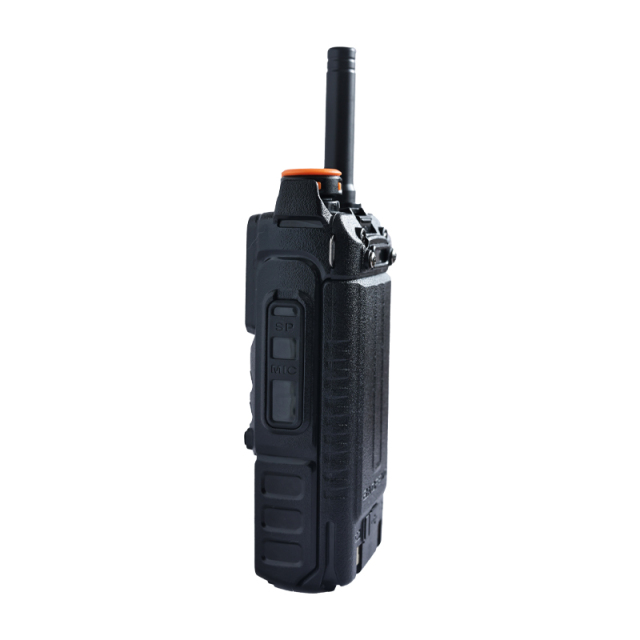

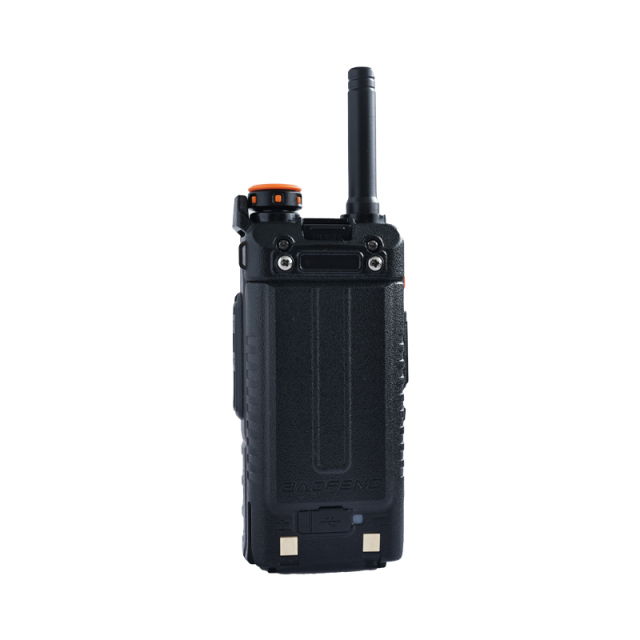

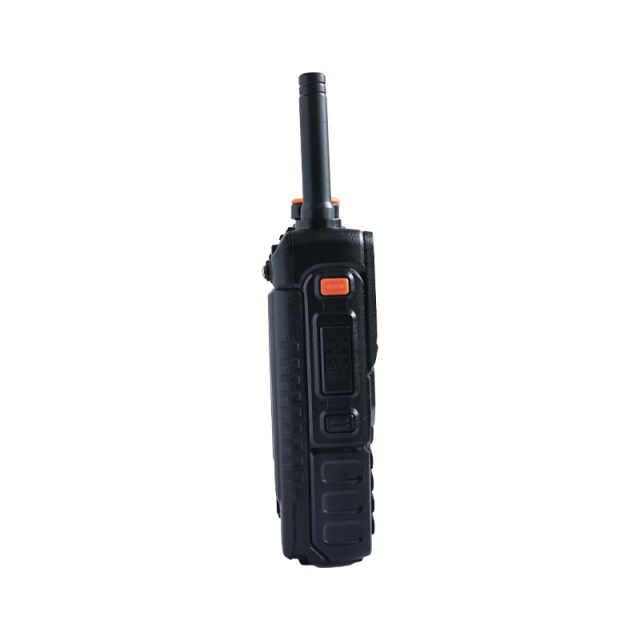

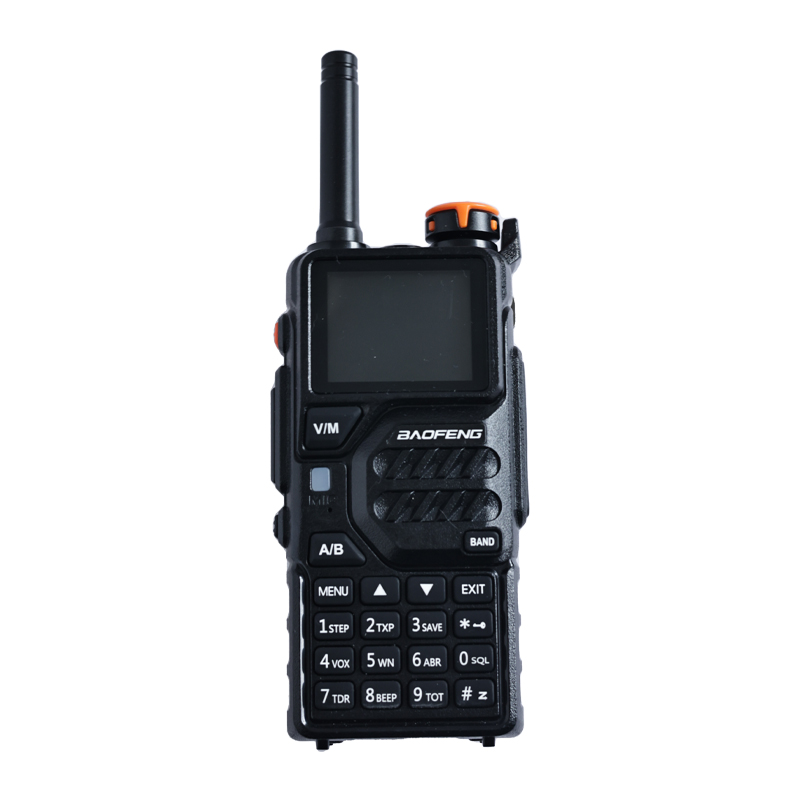

Handheld Drone Detection Equipment--Detect drone model, frequency band, and strength
The Portable UAV Detector is a small and compact device specifically designed for individual soldier use for detecting unmanned aerial vehicles (UAVs). The Portable UAV Detector utilizes proprietary low-power digital-analog hybrid receiver technology for passive detection of unmanned aerial vehicles (UAVs). It can detect various models including the entire DJI series, Autel series, and FPV. While maintaining high sensitivity in detection, the device achieves an extremely low false alarm rate. Upon detecting a signal, it immediately alerts the user through lights, sounds, and vibrations, and displays relevant information about the UAV on its screen, enabling rapid response and monitoring of the UAV.
Operating frequency band
845MHz 、 915MHz 、1080~1360MHz、2400~2485MHz、3.3GHz、
4900MHz~6000MH
（ frequency can be expaned to capability:300MHz～6200MHz）
Detection Types
≥ 1.5km ； （ Using DJI Mini 2 with a line-of- sight environment height of 50m as
the standard；Using an FPV 600mW video transmission transmitter with a line-of-sight environment
height of 50m as the standard.）
Device Power Source

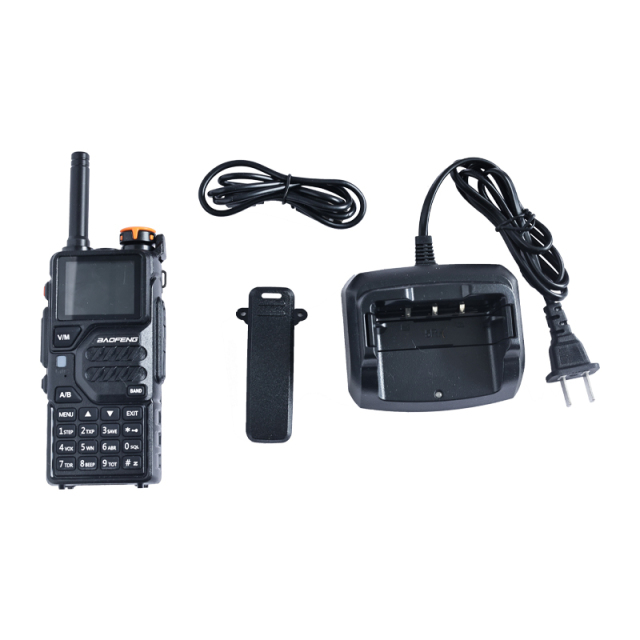

Replaceable lithium-ion battery, supports Type-C fast charging and charging via
docking station.
Functional Targeting and Primary Users of the Detection Device This handheld unit is designed for security professionals and organizations requiring rapid identification of unauthorized drones. Target users include facility security teams and mobile patrol units who need to monitor airspace for UAV threats. As an anti drone device within a broader anti drone system, it provides actionable intelligence by detecting drone models and broadcasting frequencies. Its portability and alarm functions facilitate deployment in various operational environments, ensuring immediate situational awareness and enabling swift intervention measures compliant with modern security protocols. Technical Architecture and Performance Specifications The device employs a passive detection system integrating a low-power digital-analog hybrid receiver covering 845 MHz to 6 GHz, expandable to 300 MHz–6200 MHz, allowing broad-spectrum UAV signal monitoring. This range supports detection of popular models such as DJI, Autel, and FPV drones. It features an onboard display presenting drone type, frequency, and signal strength, complemented by audible, visual, and vibration alerts. Its detection radius surpasses 1.5 kilometers under line-of-sight conditions. Powered by a replaceable lithium-ion battery with Type-C fast charging, it ensures approximately six hours of continuous operation, weighing under 300 grams for ergonomic field use within anti drone technology frameworks. Industry Integration and Operational Significance Widely applicable in sectors demanding perimeter and aerial surveillance, this handheld UAV detector integrates effectively into security architectures for event security management, facility perimeter control, and law enforcement patrols. It supports operational workflows by delivering real-time drone data for threat assessment, facilitating compliance with no-fly zone enforcement. Training institutions benefit from its hands-on detection capabilities during UAV detection exercises. Its compatibility with existing anti-drone systems enhances layered defense strategies in critical infrastructure, aligning with current standards in anti drone defense system deployment for protecting strategic assets.
Product Advantages
Architectural and System Design Benefits The handheld drone detector features a modular design optimized for integration into broader anti drone systems and security frameworks. Its passive detection approach eliminates emission risks, ensuring stealthy operation compatible with sensitive environments. The device’s wide frequency coverage and model recognition capabilities enhance adaptability across varying drone threats. Compact dimensions and ergonomic weight facilitate easy carriage during patrols, supporting diverse deployment strategies prevalent among anti drone companies. Interface customization options allow tailoring of alarm settings to specific security policies, promoting seamless incorporation into multi-layered defense infrastructures.
Performance Reliability and User-Centric Value This detector delivers consistent, accurate identification of UAVs with minimal false alarms, improving operational response effectiveness. The multi-modal alarm system enhances situational awareness, allowing security personnel to react promptly to incursions. Its extended battery life and fast charging reduce downtime in field operations, contributing to sustained surveillance efforts. By consolidating drone detection into a handheld format, the device empowers users with a tactical advantage in identifying and cataloging drone threats. Consequently, it increases the ROI in security deployments leveraging anti drone technology and drone detection radar system components.
Use Scenarios
Security Applications in Mobile Patrol Environments In mobile security patrols, the handheld drone detector functions as a frontline reconnaissance tool to detect unauthorized UAV activities across complex and dynamic perimeters. The device’s portable design and rapid alert system enable field operators to detect multiple drone models quickly, increasing situational awareness in transit. Integration with communication protocols allows synchronized threat reporting, assisting in coordinated security responses. This compliance with operational security standards ensures effectiveness within existing anti uav system architectures, enhancing mobile unit capabilities for protecting sensitive facilities or event venues.
Perimeter Surveillance in Critical Infrastructure Protection For critical infrastructure protection, this handheld anti drone device serves as an essential component to detect low-altitude UAV intrusions before they can compromise secured zones. Its broad frequency range and model identification support proactive perimeter defenses, aligning with regulatory requirements for airspace control. The device’s rapid notification mechanisms permit timely activation of layered countermeasures, including anti drone jammer systems or physical interception protocols. Deployment within integrated anti drone systems ensures that perimeter monitoring workflows maintain high reliability and compliance with industry best practices.
Handheld Drone Detection Equipment--Detect drone model, frequency band, and strength
Operating Frequency Range
845MHz 、 915MHz 、1080~1360MHz、2400~2485MHz、3.3GHz、 4900MHz~6000MH （ frequency can be expaned to capability:300MHz～6200MHz）
Detection Range
≥ 1.5km ； （ Using DJI Mini 2 with a line-of- sight environment height of 50m as the standard；Using an FPV 600mW video transmission transmitter with a line-of-sight environment height of 50m as the standard.）
Device Power Source
Replaceable lithium-ion battery, supports Type-C fast charging and charging via docking station.
Battery Life
6 hours. (Battery Capacity 2500mAh)
External Dimensions
136×63×40mm (Including Antenna)
Operating Weight
≤300g

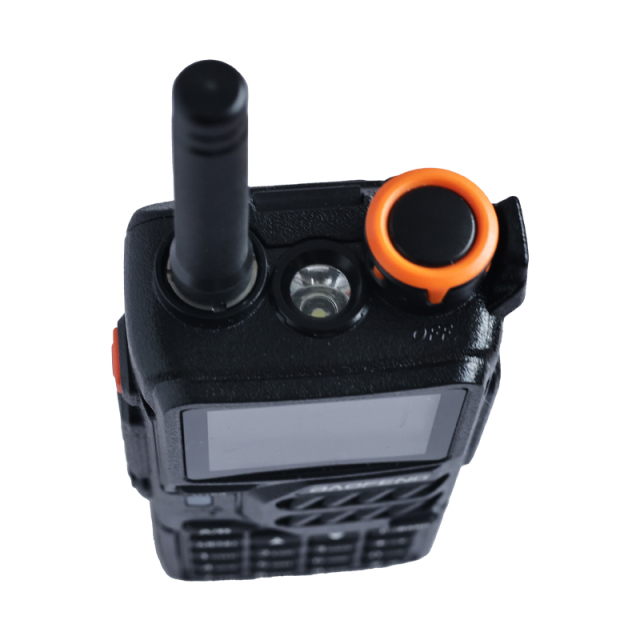

Operating Instructions: (1) Power On/Off: Rotate the switch knob clockwise to turn on the device, which will be accompanied by a "beep" sound; rotate the switch knob counterclockwise to turn off the device.

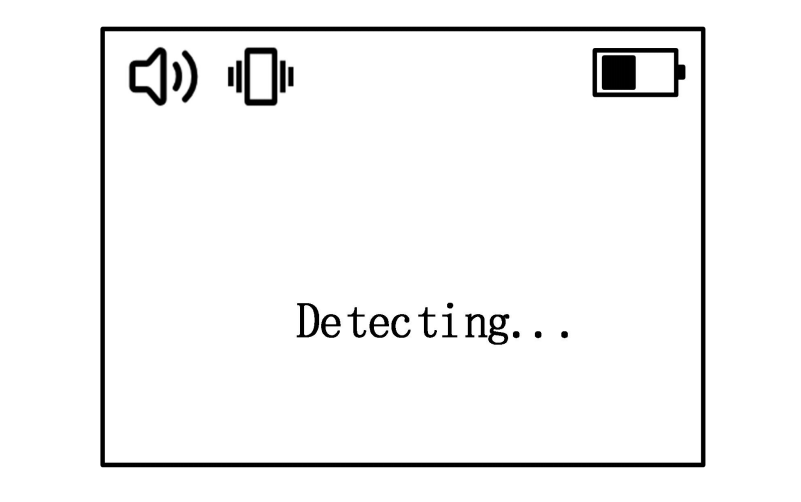

(2) Detection Status: After the device is turned on, the screen will light up and display "Detecting...", indicating that the device is in normal startup detection and operating. If no drone is detected for 30 seconds, the scree will automatically turn off, but the device remains in operation.
Clicking any button will illuminate the screen.

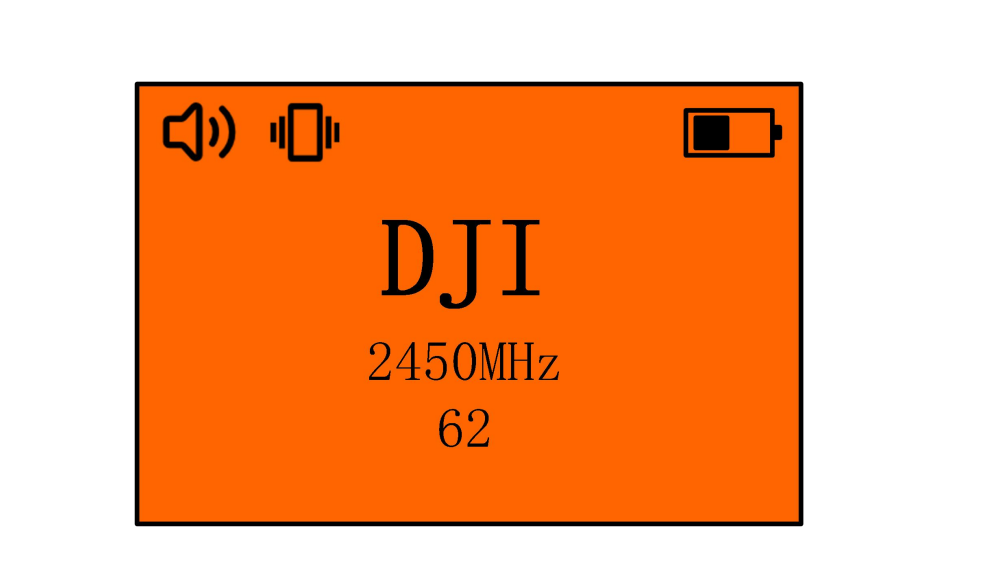

When detecting a drone, the screen will automatically light up, turn red, and display the drone information: a. Drone Type: DJI, AUTEL, FPV, DIY . b. Drone Frequency (MHz). c. Signal Strength: e.g., 62.
(3) Volume Adjustment: While the device is powered on, rotate the switch knob clockwise to increase the buzzer volume; rotate it counterclockwise to decrease the buzzer volume.
(4) Detection Alarm: Upon powering on, the device enters drone detection mode. Once a drone is detected, the screen illuminates, displaying the drone's type, frequency, and signal strength.

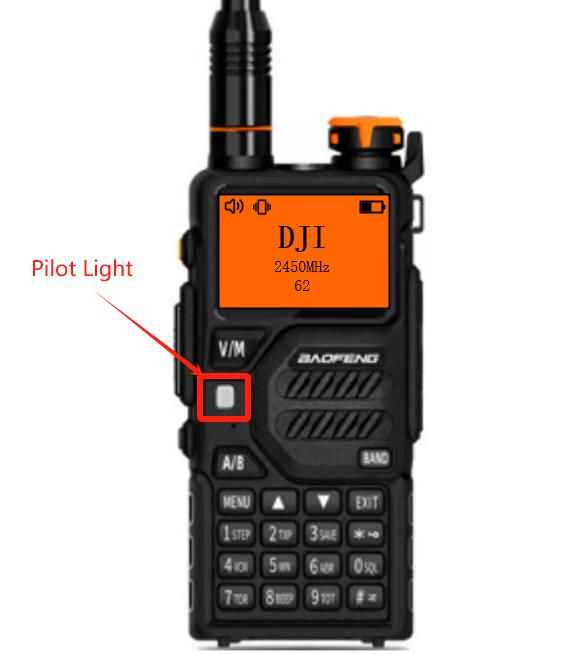

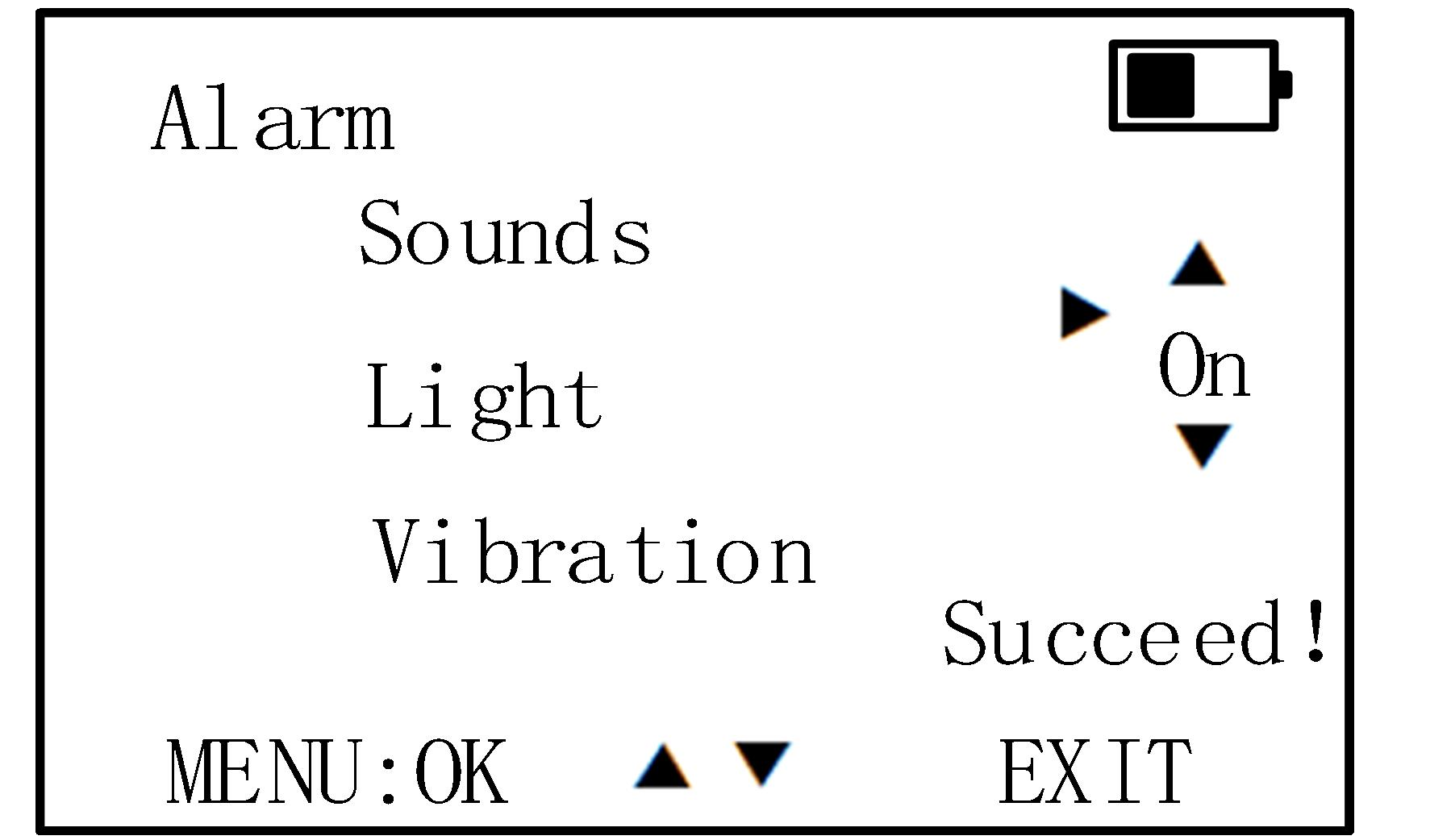

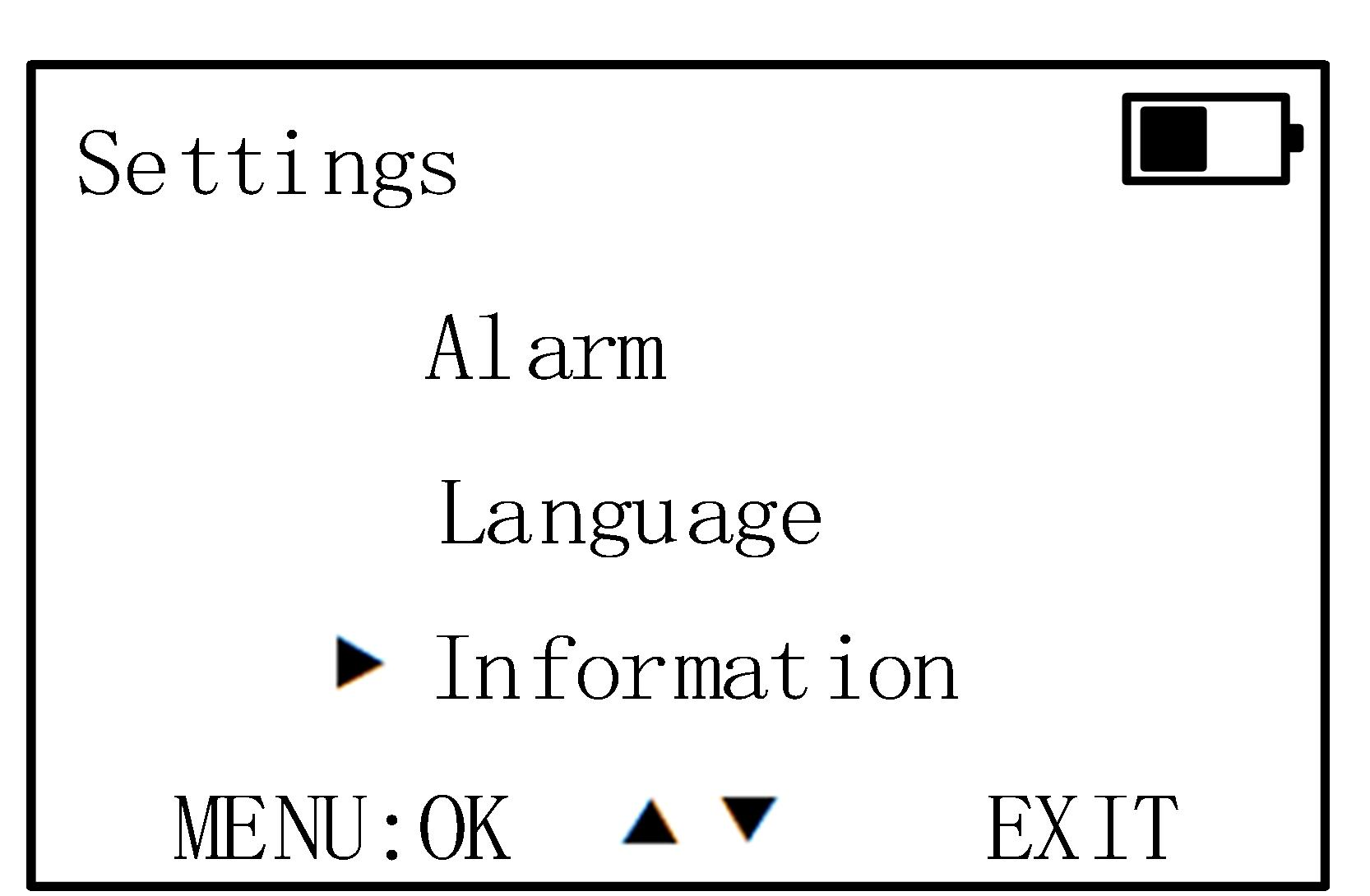

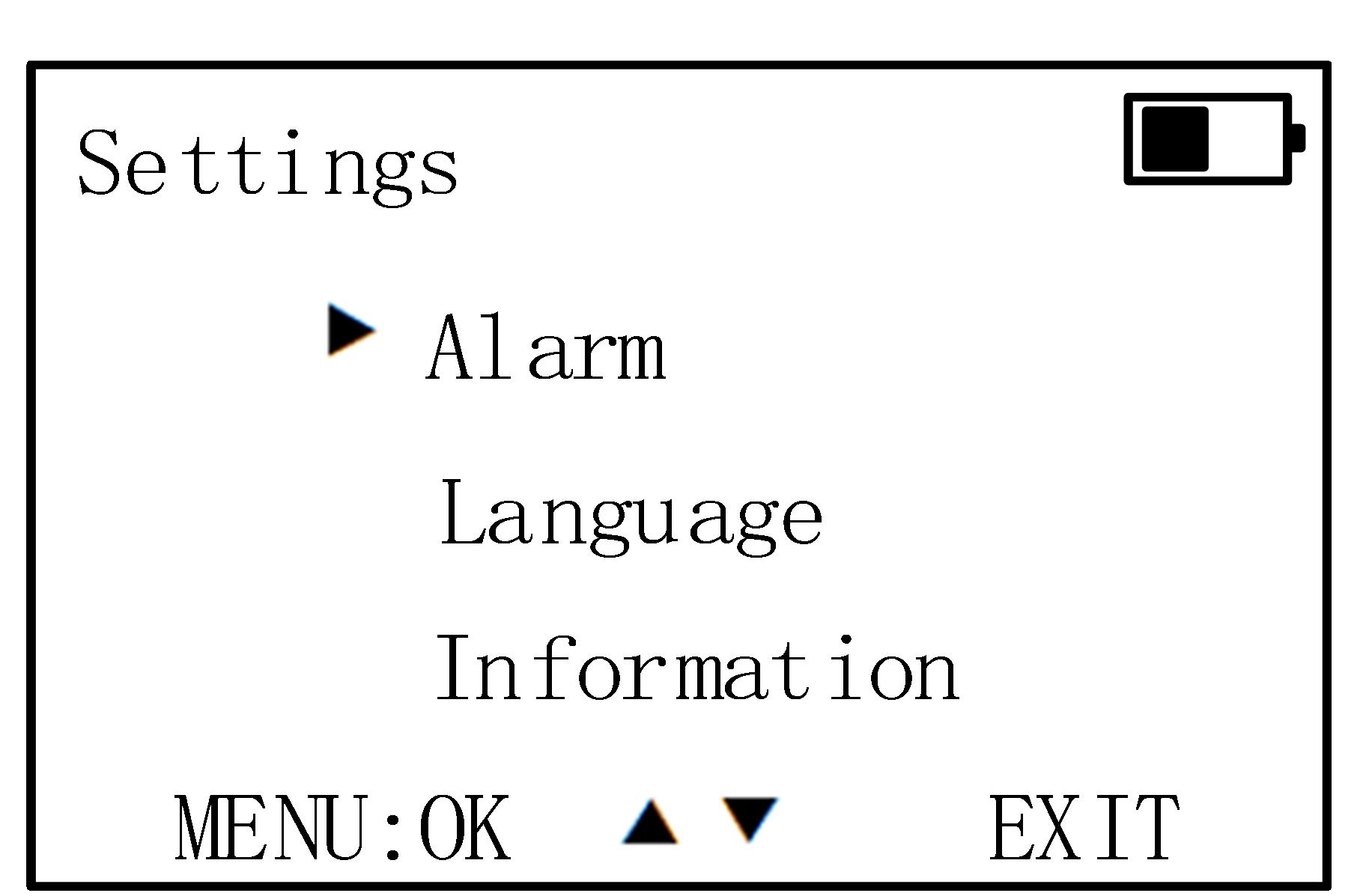

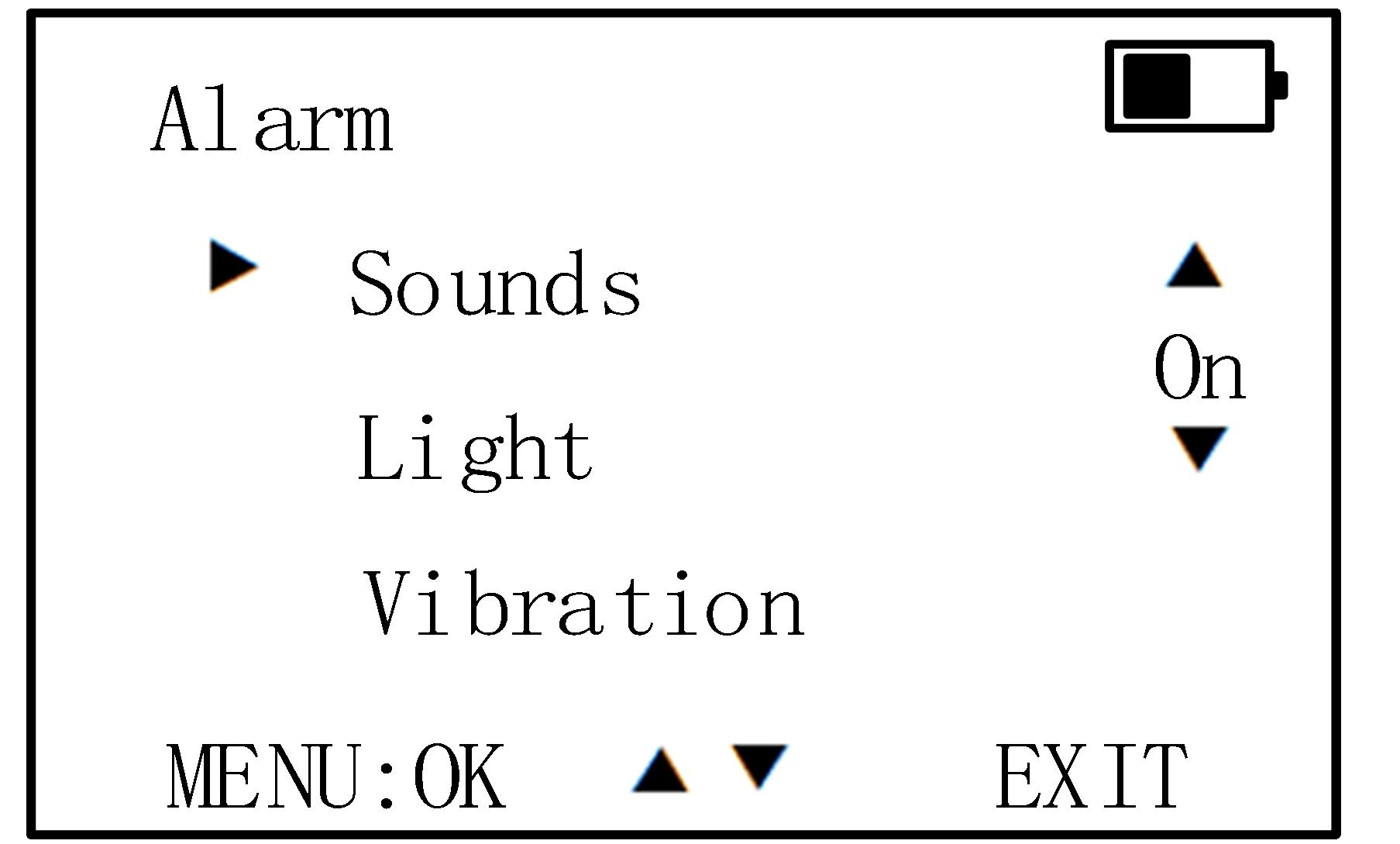

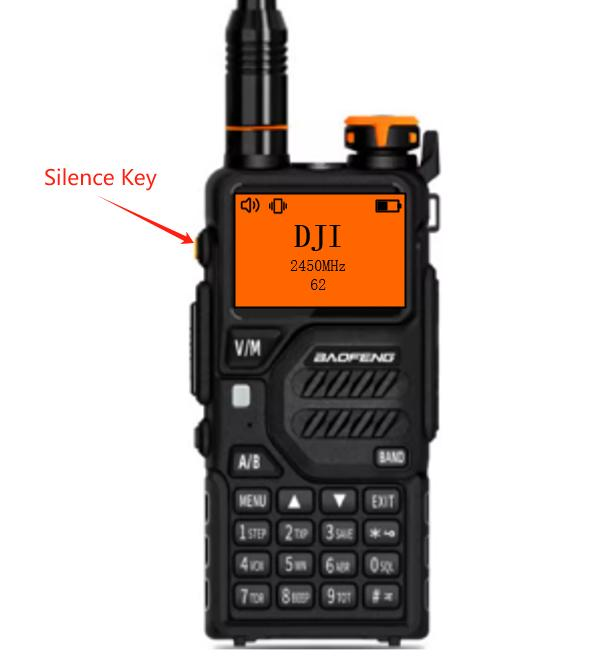

Simultaneously, the buzzer emits a "beep beep" alarm sound, the entire device vibrates, and the indicator light on the front panel of the device flashes. (5) Cancel Alarm: When the device is in the alarm state, pressing the orange "Silence Key" button once will stop the buzzer from sounding the alarm and cease the vibration. The device will enter a silent state for 10 seconds. If a drone is detected again after those 10 seconds, the device will resume its normal alarm function. (6) System Settings: Press the 【MENU】 button once to enter system settings. Use the【▼] and 【▲】 buttons to navigate through the function menu. The 【MENU】 button serves as the confirmation key, while the 【EXIT】button is used to exit. After selecting a function item, press 【MENU】to save (a "Save Successful!" prompt will appear), and then press【EXIT】 to exit the settings. (Note that upon powering on, the system will default to saving the settings from before the last power-off.) Alarm Settings: Press the [MENU] button to enter the Alarm Settings, as shown in the figure below(left picture) Press the 【▼】and 【▲】 buttons to select among sound, light, and vibration options. Once you have chosen the alarm mode, press the 【MENU】button to switch to the on/off key for that function. At this point, pressing the 【▼】 and 【▲】 buttons will allow you to toggle the function on or off. Pressing the 【MENU】 button again will save the setting, and a "Save Successful!" prompt will appear at the bottom of the screen (as shown in the figure below). Finally, press the 【EXIT】 button to exit.(right picture)

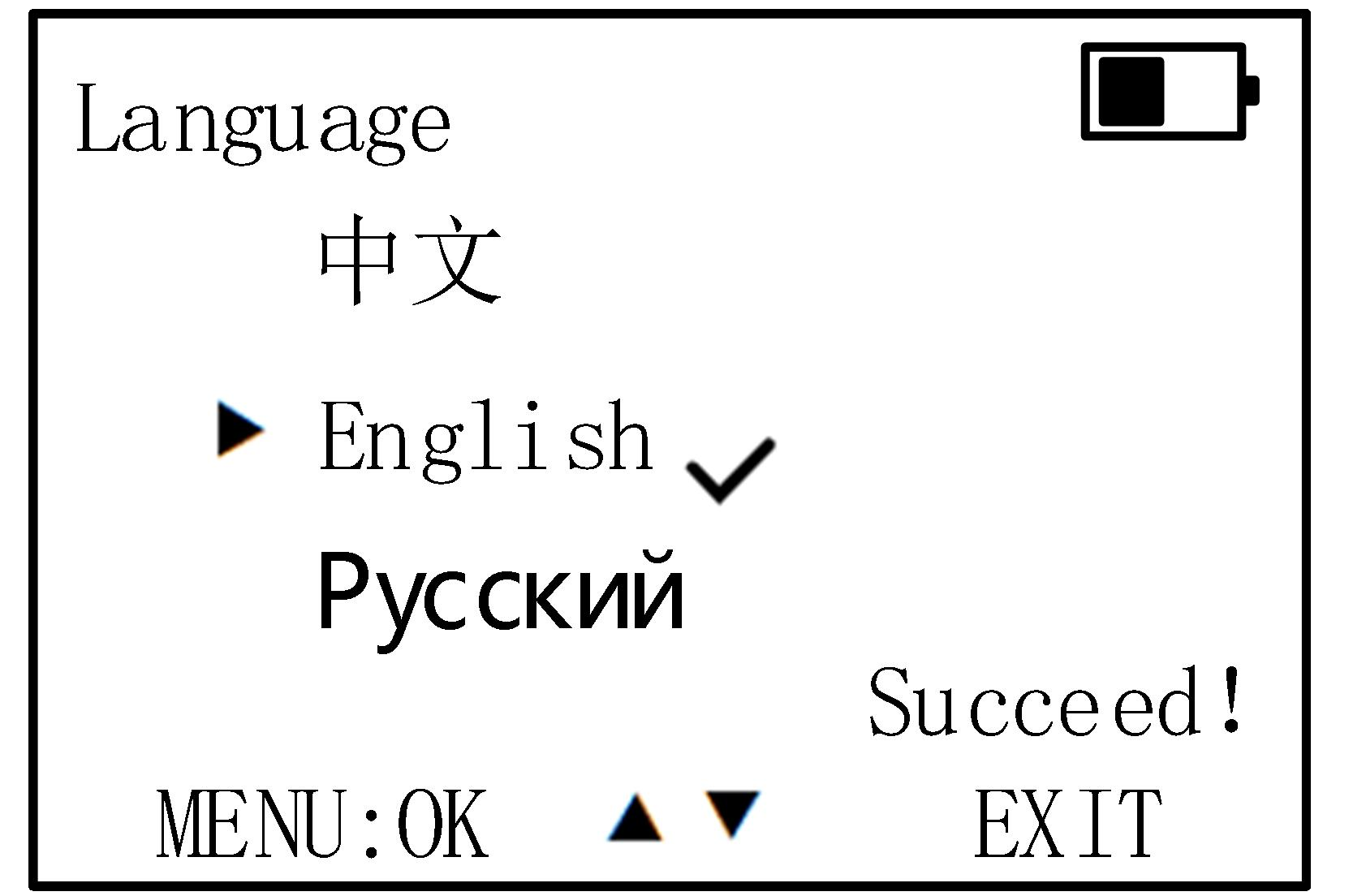

Language: Press the [MENU] button to enter the Language Settings, as shown in the figure below(left picture) Press the [▼] and [▲] buttons to select among Chinese, English, and Russian options. Use these buttons to choose the desired language. Once selected, press the [MENU] button to save the setting. A "Save Successful!" prompt will appear at the bottom of the screen (as shown in the figure below). Finally, press the [EXIT] button to exit.(right picture)

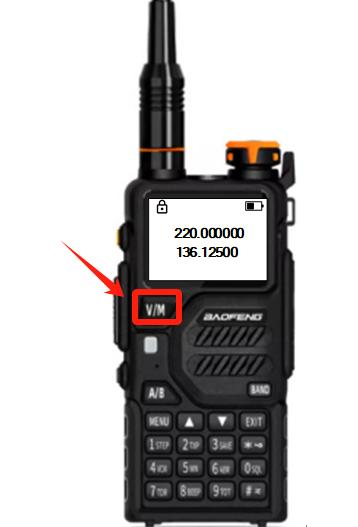

Device Information: Press the [MENU] button to enter the Device Information, as shown in the figure below (left picture): Lock/Customs Mode: Press and hold the [V/M] button while powering on the device to lock it. This will display a regular intercom interface (as shown in the figure below) without any actual functionality. The same operation can be used to unlock the device from this mode.(right picture)
Autel Category: (1) AUTEL EVO2 . (2) AUTEL EVO LITE/NANO Series（including LITE+/NANO+）. (3) AUTEL EVO 2 PRO Series （including PRO /PRO V2 /PRO V3） (4) AUTEL MAX Series（including AUTEL 4T MAX）
Main Functions: （1） The device adopts a passive detection method, without emitting any signals externally. （2） It possesses the capability to detect various models including the entire DJI series, Autel series, and FPV. （3） It can display the detected UAV model type and battery level information of detector on the screen. （4） It features audible, visual, and vibration alarm methods. （5） It has a low battery alarm function. （6） It has the capability to upgrade for the detection and recognition of UAVs operating on unconventional frequencies
About Us
TATUSKY TECHNOLOGY CO., LIMITED is dedicated to providing cutting-edge solutions for drone threat mitigation. Our Wearable 1-Band Handheld Drone Jammer is a testament to our commitment to innovation and security. Designed for single-operator use, this portable device offers a powerful defense against drone threats, ensuring effective disruption of signals within critical frequency ranges. Ideal for security personnel in field operations, it combines mobility and reliability for personal defense against unmanned aerial vehicles (UAVs). With a frequency range of 700-1000MHz, waterproof IP68 rating, and lightweight aluminum construction, our jammer is built to withstand challenging environments. TATUSKY TECHNOLOGY CO., LIMITED's focus on efficiency and transformation empowers industries to safeguard their operations with ease and confidence. Join us in our mission to deliver unparalleled anti-drone solutions that meet the demands of modern security challenges.
Contact TATUSKY TECHNOLOGY CO., LIMITED today to upgrade your security operations with the Wearable 1-Band Handheld Drone Jammer – Portable, Single-Operator Anti-Drone Solution. Let’s enhance your defense against UAV threats!
FAQ
What frequency bands does the handheld drone detection equipment support? The device operates across a wide frequency range from 845 MHz to 6 GHz, with expandability from 300 MHz to 6200 MHz. This broad coverage enables detection of diverse UAV signals, supporting effective operation in varied environments and enhancing your anti drone system capabilities.
How long can the drone detector be used on a single charge? Equipped with a replaceable lithium-ion battery of 2500mAh capacity, the handheld drone detection device offers around six hours of operational time. Fast charging via Type-C or docking station ensures minimal downtime when conducting extended drone detection system patrols.
Can the detection device be customized for specific security requirements? Yes, the handheld detector provides customizable alarm settings including audible, visual, and vibration alerts, as well as system parameter adjustments. These features allow it to be tailored to specific security protocols in facilities, improving the reliability of your anti drone defenses.
What maintenance is required to ensure the handheld UAV detector’s performance? Regular checks include replacing or charging the lithium-ion battery and ensuring the antenna is intact and unobstructed. The device’s passive detection technology reduces wear, but periodic firmware updates via the manufacturer help maintain optimal anti drone technology performance and detection accuracy.
