1. Product overview

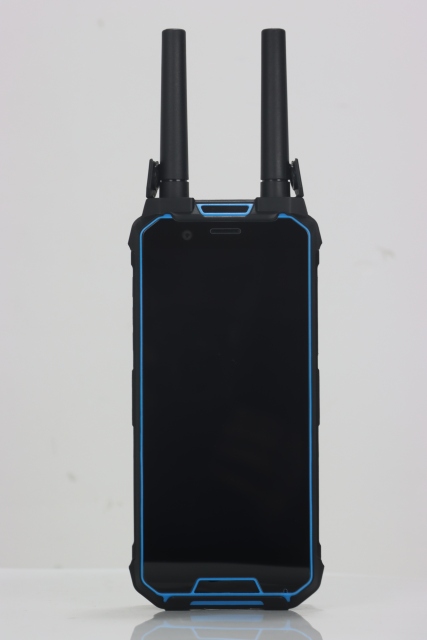

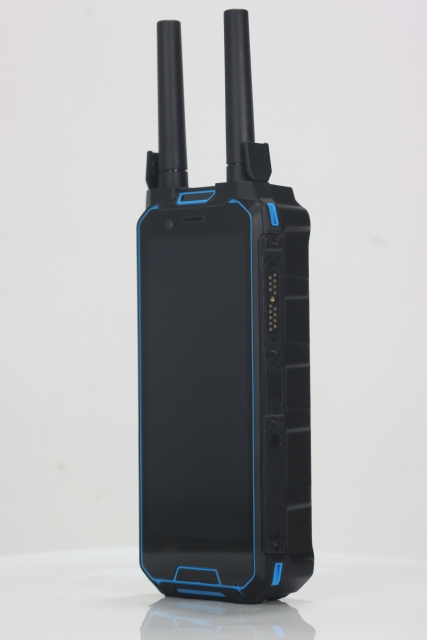

H2L is a single-soldier portable product integrating uav spectrum detection, protocol analysis, RID identification and other regulatory functions. The single machine can realize real-time detection and early warning of UAV, and accurate positioning and trajectory tracking of common UAV and pilots (remote control).

The product is compact in design, easy to carry and lasting, and can be applied to Security for major events, Guard duty support, Security patrol, Special anti-terrorism, Political core area, Border defense, Airport, Power and Petrochemical park and other scenarios.

2. Product Formation

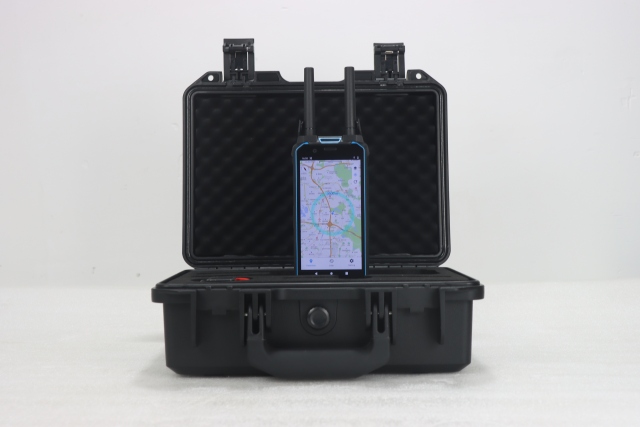

The product is mainly composed of main machine, detection antenna, Type-C interface charger and protective case, as shown in the following table:

Table 1 List of product hardware composition

3. Product Function

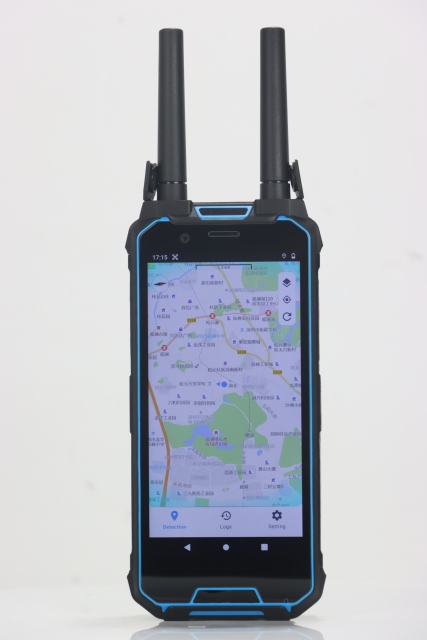

• Uav positioning: The single machine can locate the position of the UAV, which can be presented in the form of "UAV icon" in the electronic map interface.
• UAV Pilots positioning: The single machine can locate the position of the remote control (Pilot), which can be presented in the way of "remote control icon" in the electronic map interface.
• Detection and identification:With spectrum detection function, the recognizable models can include DJI, Dow Tong and other common models, as well as self-made crossing machine, WiFi machine and other models.
• FPV detection: it can detect and identify the self-made crossing machine, and analyze the first perspective flight picture in real time.
• Flying hand position navigation^[4]:The system can plan the search route of the drone operator, and provide the function of "one-click position navigation".
• Unique identity^[5]:DJI series (OcuSync) UAV, RID protocol UAV, WIFI UAV unique serial number (SN).
• Trajectory tracking^[6]: Multiple flight tracks of drones can be displayed in the electronic map interface.
• Multidimensional information monitoring^[7]:The current UAV model, location information (longitude and latitude), speed, altitude, and pilot position (longitude and latitude) can be displayed in real time in the detection list bar.
• Black and white list^[8]:The whitelist can be set up, and the system detects the drone in the whitelist.
• RID monitor^[9]: With RID remote recognition function, support for a variety of standard protocols.
• Intrusion alarm: When the drone invasion is detected, the equipment will conduct sound, vibration and other ways to alarm.
• Track playback:support historical track playback function to assist security personnel to analyze historical UAV flight data.

13) Detection record: The detection record list can be reserved for the historical detection record, including multidimensional information such as UAV serial number, model and frequency.

14) Visual data analysis: Support UAV detection and flight data statistical analysis, which can be displayed through a graphical interface.

15) Networking intercom: The device can be connected to the wireless network and support the real-time intercom function between the devices.(Optional function)

Note: In [1] - [8], The positioning UAV is the OcuSync transmission model of DJI series.

[9] GB 42590-2023、ASTM F3411 Remote ID、ASD-STAN  prEN 4709-002

4. Product Characteristics

• Passive detection:no electromagnetic environmental pollution, environmental friendly, high concealment.

• Large screen touch interaction:using a 6-inch large screen touch design, easy to operate, convenient and fast.

• Mobile portability: the device weighs only 650g and can be easily carried by hand, Ready-to-

4) Standard charging interface: Type-c standard charging interface, which can be charged by external power supply adapter or mobile power supply.

5. Product index parameters

5.1 Performance indicators

Table 2 Product Performance indicators

5.2 Mechanical parameters

Table 3. Mechanical parameters

5.3 Electrical characteristics

Table 4. Electrical characteristics

5.4 Environmental Adaptability

Table 5: Environmental Adaptability

5.5 Touch screen parameters

Table 6 Touch screen parameters

5.6 System storage

Table 7. System storage parameters

5.7 Operating environment

Table 8. System operation parameters


Engineered for Precision and Versatility
Introducing the Long Distance 1-3km Handheld Drone Detection System, a cutting-edge solution designed for professionals who demand accuracy and reliability in UAV monitoring. This drone detection system integrates advanced UAV spectrum detection, protocol analysis, and RID identification, ensuring comprehensive surveillance capabilities. Whether you're securing major events, conducting security patrols, or safeguarding critical infrastructure like airports and petrochemical parks, this system offers unparalleled performance. Its compact design makes it easy to carry, allowing for rapid deployment in diverse environments, from urban settings to open areas. With a detection frequency band ranging from 100MHz to 6GHz, this drone detection radar system provides real-time detection and early warning, enabling precise positioning and trajectory tracking of common UAVs and pilots. The system's passive detection feature ensures no electromagnetic environmental pollution, maintaining high concealment and environmental friendliness.

Seamless Integration and User-Friendly Operation
The Long Distance Handheld RF drone detection system is engineered for seamless integration into existing security frameworks. It comes equipped with a main machine, detection antenna, Type-C interface charger, and protective case, ensuring durability and ease of use. The large 6-inch touch screen interface offers intuitive operation, allowing users to navigate through various functions effortlessly. This drone detection system supports FPV detection, enabling real-time analysis of first-person flight perspectives. With features like trajectory tracking, multidimensional information monitoring, and intrusion alarms, security personnel can effectively manage UAV threats. The system's networking intercom function facilitates real-time communication between devices, enhancing coordination during operations. Additionally, the drone detection radar system supports historical track playback, providing valuable insights for analyzing past UAV activities.

Built for Robust Performance and Adaptability
Designed to withstand challenging conditions, the Long Distance Handheld RF drone detection system boasts impressive performance indicators. It operates efficiently within a detection radius of 1.5 to 2km in urban environments and extends up to 3km in open areas. The system's response time is swift, ranging from 3 to 5 seconds, ensuring timely alerts and interventions. With a battery capacity of 8000mAh, the device offers an endurance time of 4 to 6 hours, making it ideal for prolonged missions. The Type-C standard charging interface allows for convenient recharging via external power supply adapters or mobile power sources. The system's environmental adaptability is noteworthy, functioning optimally in temperatures ranging from -25 to 40℃. With Android 12 operating system and support for both internet and offline modes, this drone detection system is versatile and ready to meet the demands of modern security operations. Whether you're dealing with DJI series UAVs, RID protocol UAVs, or WiFi UAVs, this drone detection radar system ensures accurate identification and monitoring, empowering you to maintain control and security in any scenario.

About Us

Enocsky is a pioneering force in the realm of drone detection technology, offering cutting-edge solutions designed to meet the diverse needs of security operations across various sectors. Our Long Distance 1-3km Handheld Drone Detection Equipment is a testament to our commitment to innovation and excellence. This portable device integrates UAV spectrum detection, protocol analysis, and RID identification, providing real-time detection and early warning of UAVs. With its compact design and ease of use, it is ideal for applications in major events, guard duty support, security patrols, anti-terrorism efforts, political core areas, border defense, airports, and power and petrochemical parks. Our product features include accurate positioning and trajectory tracking of UAVs and pilots, multidimensional information monitoring, and intrusion alarms, ensuring comprehensive surveillance and security. At Enocsky, we are dedicated to delivering high-performance, environmentally friendly solutions that empower our clients to safeguard their operations with confidence and efficiency.

Contact Enocsky today to upgrade your security operations with our Long Distance 1-3km Handheld Drone Detection 100MHz-6GHz Wide Range and Positioning Equipment FPV Mapping Analysis DJI Detector. Let’s enhance your surveillance capabilities!
