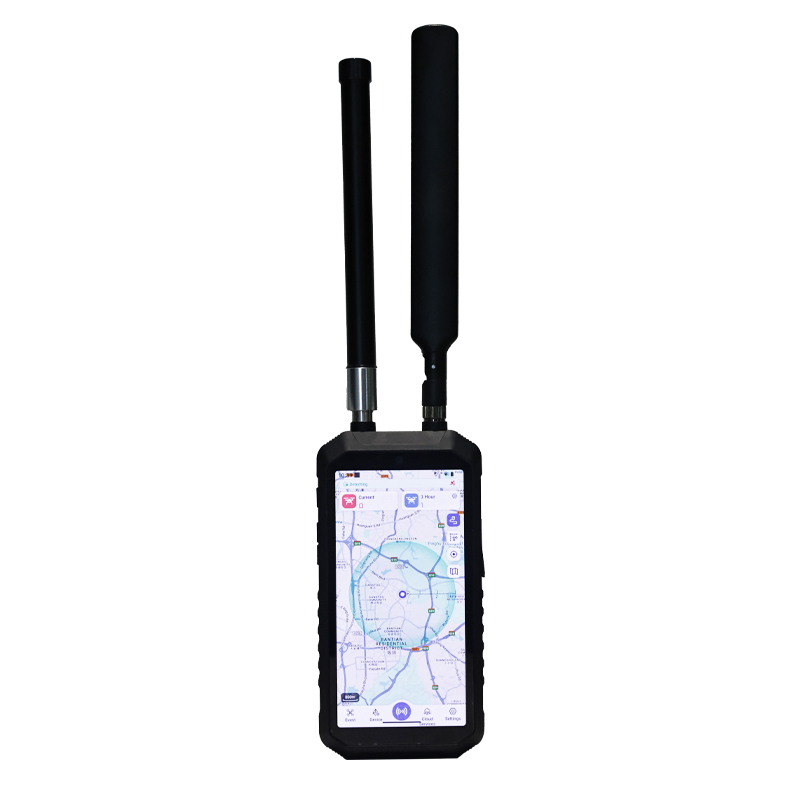

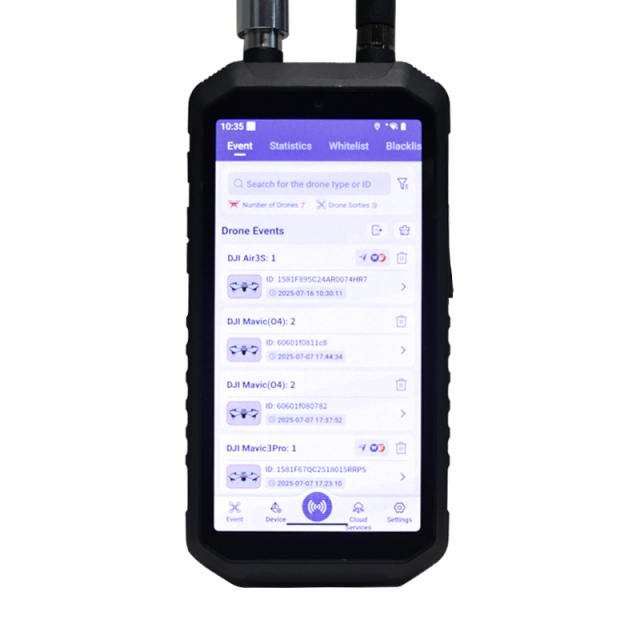

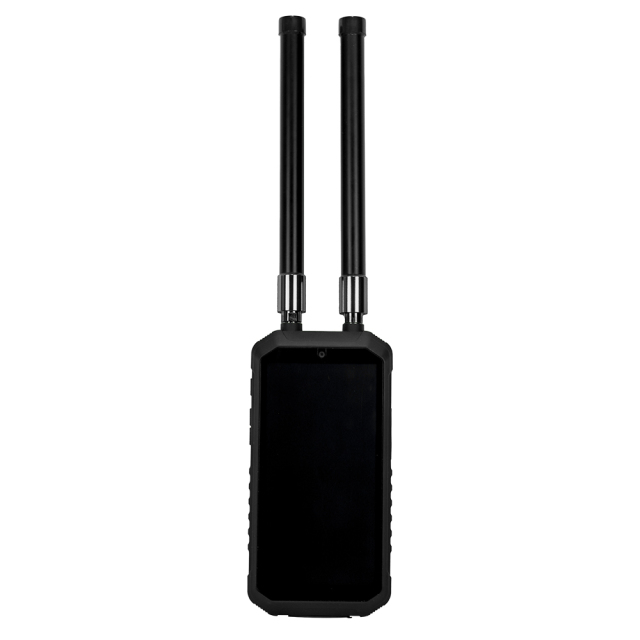

Portable Full-Band Detection and Positioning Handheld Device for DJI for Security & Protection
Parameter
|
Item
|
Indicator
|
|
Working Principle
|
Passive detection, does not emit any electromagnetic signals
|
|
Detection Bands
|
900MHz, 1.4MHz, 2.4GHz, 5.8GHz, WiFi
|
|
Sensitivity
|
-95dBm
|
|
Detection Distance
|
0~3km+ (Different exist due to different environments and drone type)
|
|
Response Time
|
≤5s
|
|
Detection Quantity
|
≥12 Drones (Simultaneous)
|
|
Number of Drone Trajectories
|
≥11 Drones (Simultaneous)
|
|
Position Accuracy
|
≤3m (Available for the drones can be decoded)
|
|
Drone Library (Geo-Locaation)
|
DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands
|
|
Dynamic Detection Movement Speed
|
≥60km/h (Available for the drones can be decoded)
|
|
Screen Size
|
6.0 Inch
|
|
Battery Capacity
|
12000mAh
|
|
Endurance
|
3~4h
|
|
External Interface
|
Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1
|
|
Charging Power
|
DC9V, 2A
|
|
Charging Time
|
≤3h（0%-100%）
|
|
Power Consumption
|
≤15W
|
|
Size
|
177mm * 89mm * 29.5mm(±2mm)
|
|
Weight
|
≤580g(±0.05kg,without antenna) ≤46g per antenna
|
|
Operation Temperature
|
-20℃ to +50℃
|
|
Storage Environment
|
15～25℃
RH25～65%
|
|
IP Level
|
IP54
|
Product Feature
(1)Passive Detection：Passively receives only, does not emit any electromagnetic signals, no impact on the surrounding environment.
(2)Precise Identification：Precisely identify the SN, model, geo-location, speed, altitude, trajectory, and remote controller information of the drones in real time.
(3)Trajectory Tracking：Multi-target trajectory tracking, pilot (remote control) tracking.
(4)Position Navigation：Detect the pilot’s (remote controller) position in real-time, one-click to track the pilot and the drone.
(5)Black and White List：One-click to mark the black and white list, there will be no alarm for white-listed drones.
(6)Network Management：Support network access to the control platform, to achieve multi-device collaboration, to achieve a wide range of prevention and control scenarios.
(7)Wireless Intercom：Multi-device wireless network, instant communication, collaborative operations, to support the completion of command and planning work.
(8)Graphic Steam：DIY graphic transmission traversing machine detection and identification, record the real-time graphic transmission screen of the drones.
(9)Compact and Portable：Light in weight and small in size; Portable, shockproof and drop-proof.
Packing Delivery
 |
 |

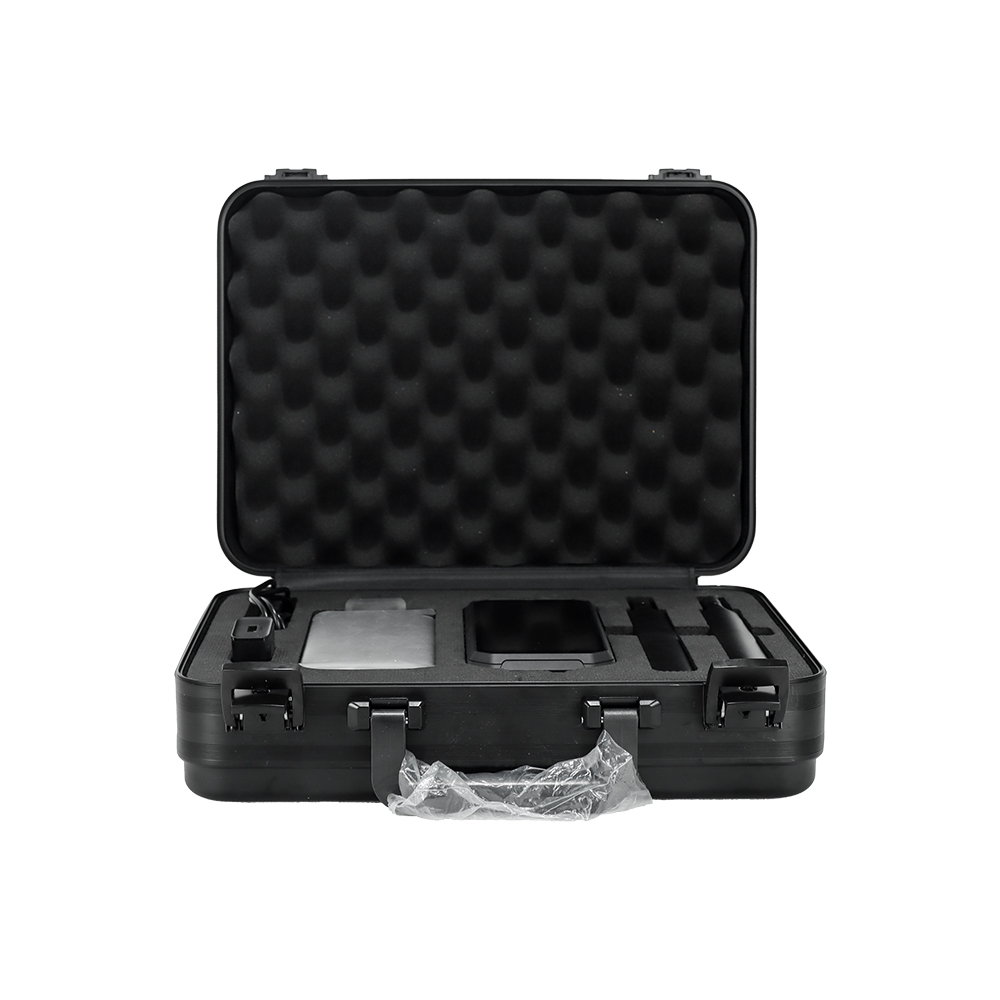

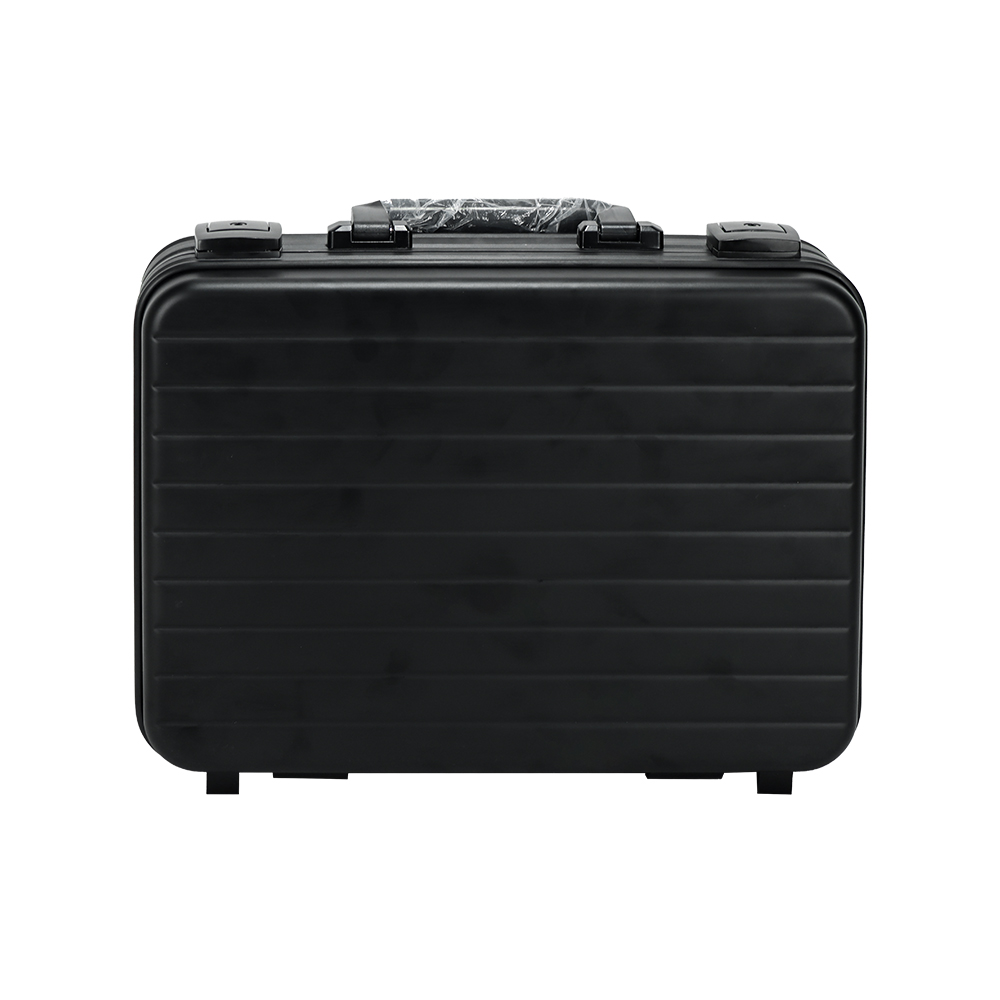

| All accessories are packed in customized boxes and then packed in cartons
Carton Size:335*260*130mm
|
